Hinged Doors (Inward Opening)

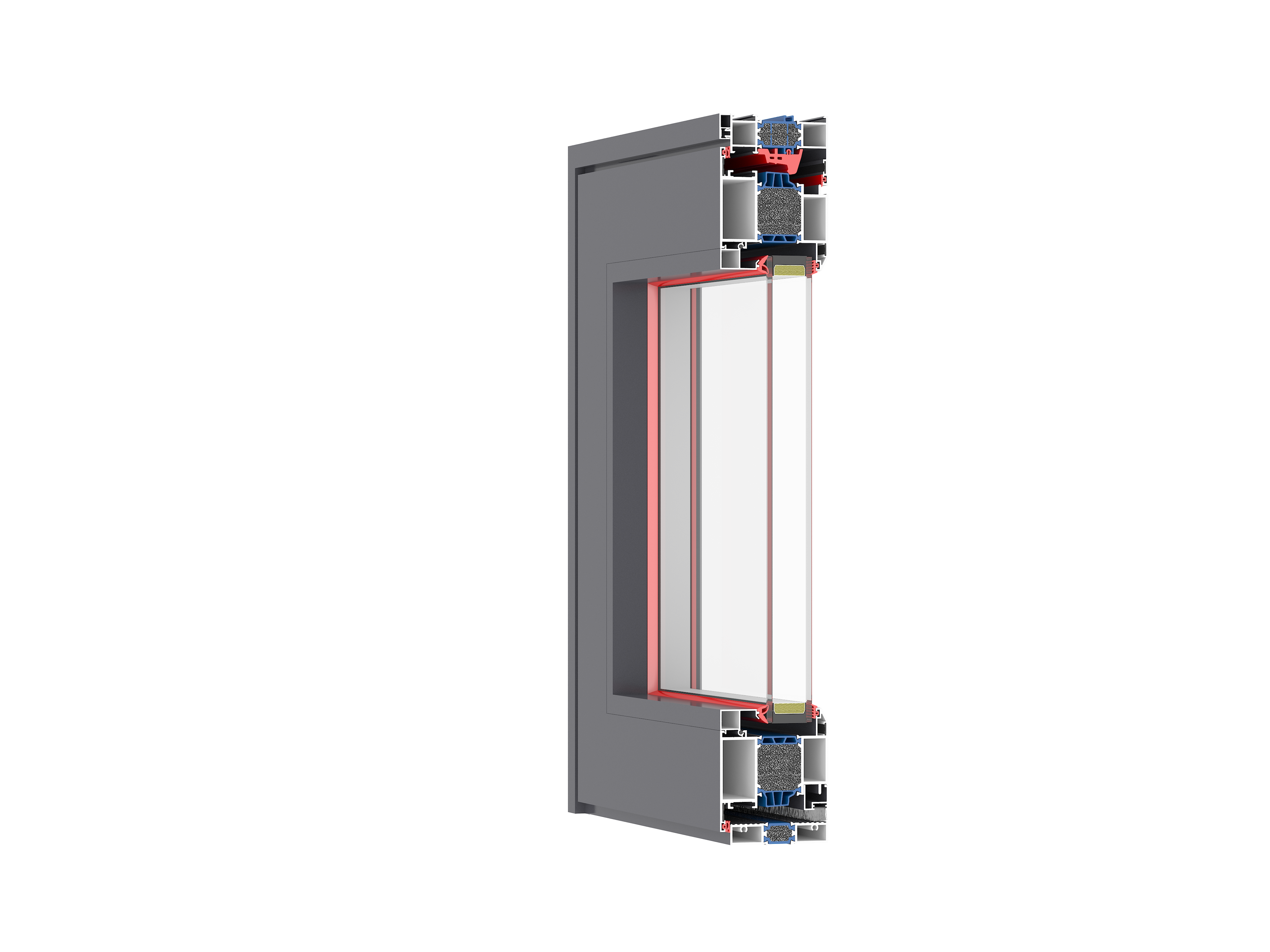

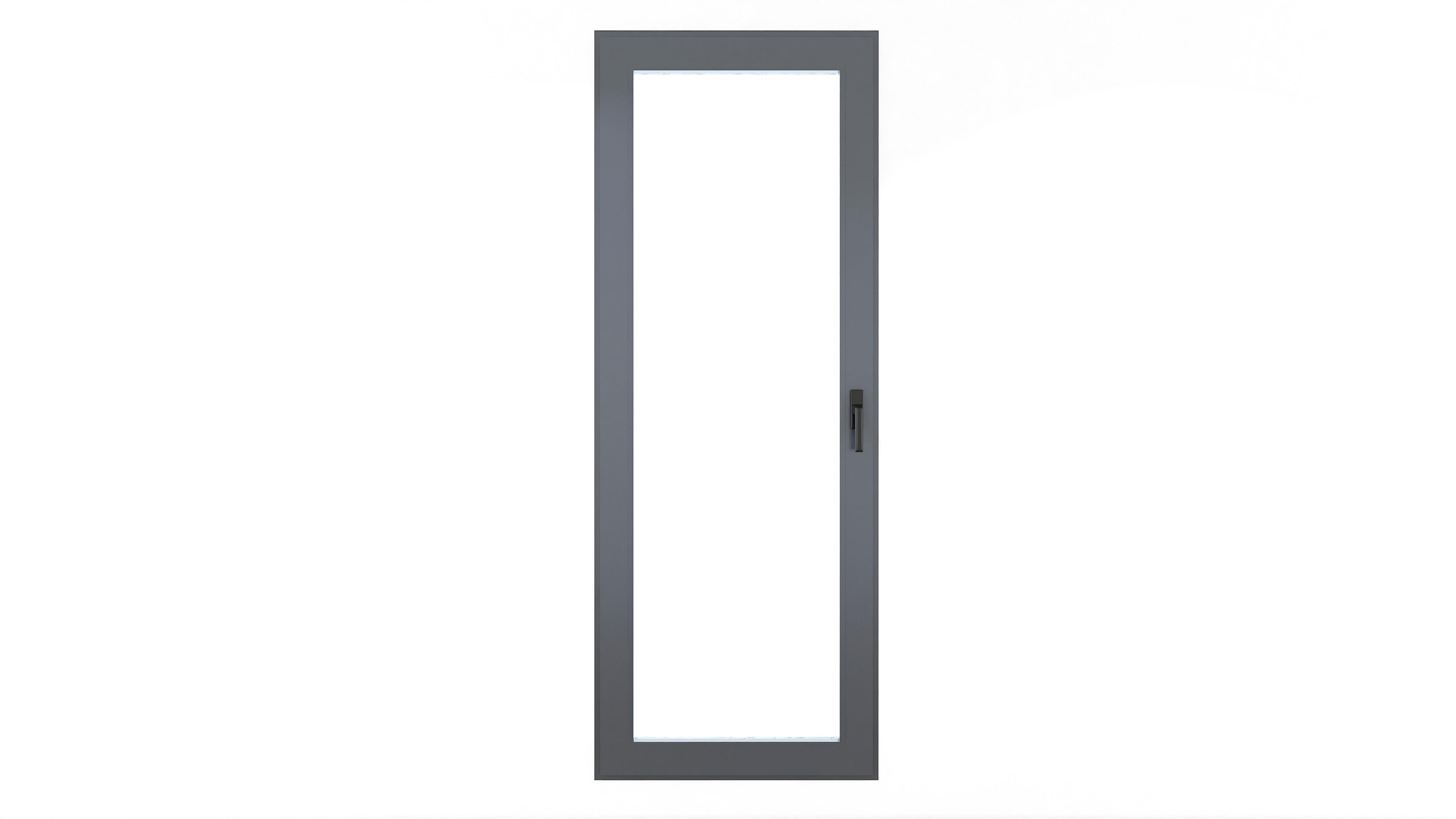

Trango 88 Series Hinged Door (Inward)
A thermally broken aluminium inward-opening hinged door with a strong 88 mm frame, suited to entries where the door swings inward.
Specifications
- Profile wall thickness
- frame 1.8 mm, sash 2.2 mm
- Frame width
- 88 mm
- Visible sash dimension
- glass sash 93 mm
- Available opening styles
- single door, double door, unequal double door
- Opening direction
- glass sash opens inward
- Standard glass
- 5+27A+5 (fluorocarbon insulated aluminium spacer)
- Maximum fixed glass rebate size
- 58 mm
- Glazing
- Double glazed unit: 5 mm / 27 mm air / 5 mm
- Thermal barrier
- Thermally broken
