Awning & Casement Windows

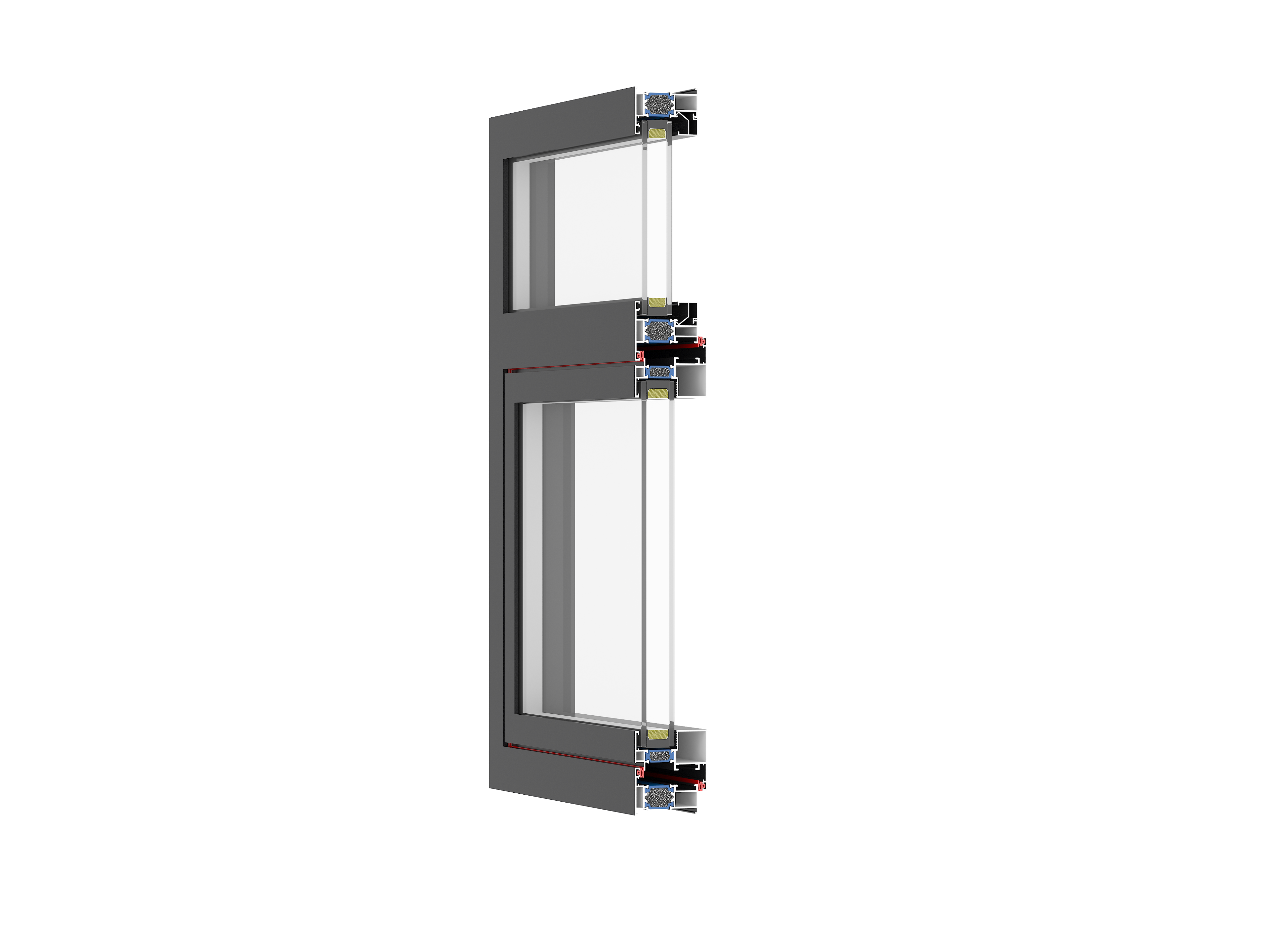

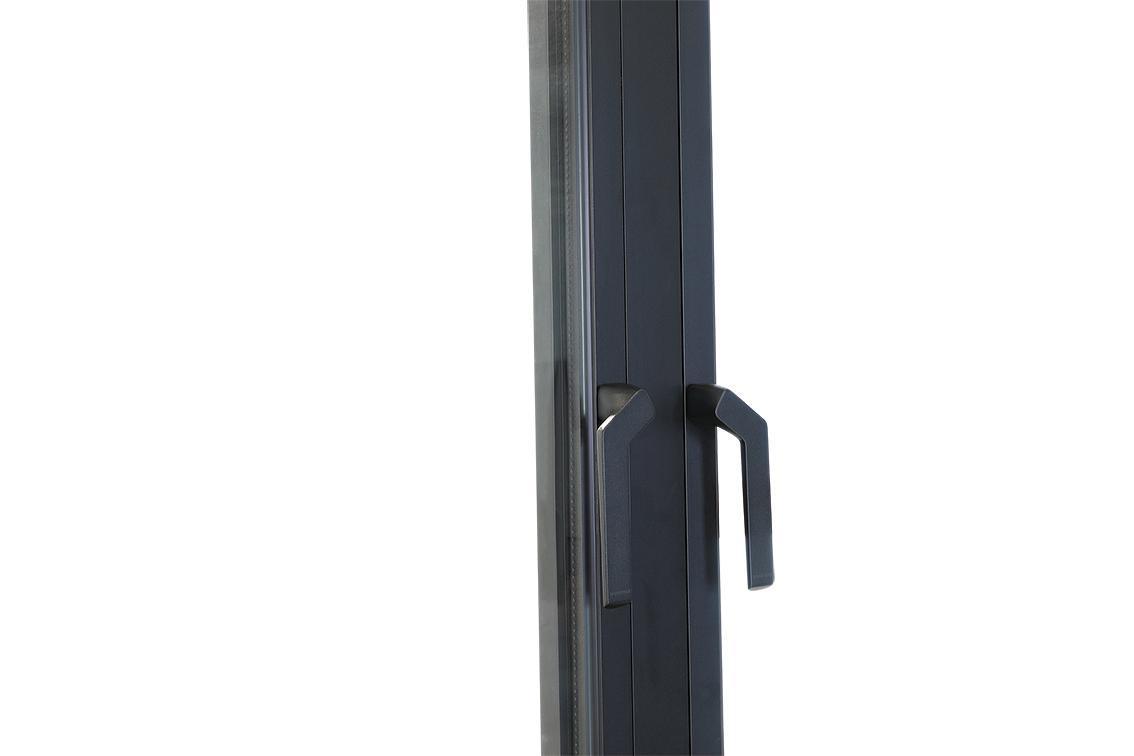

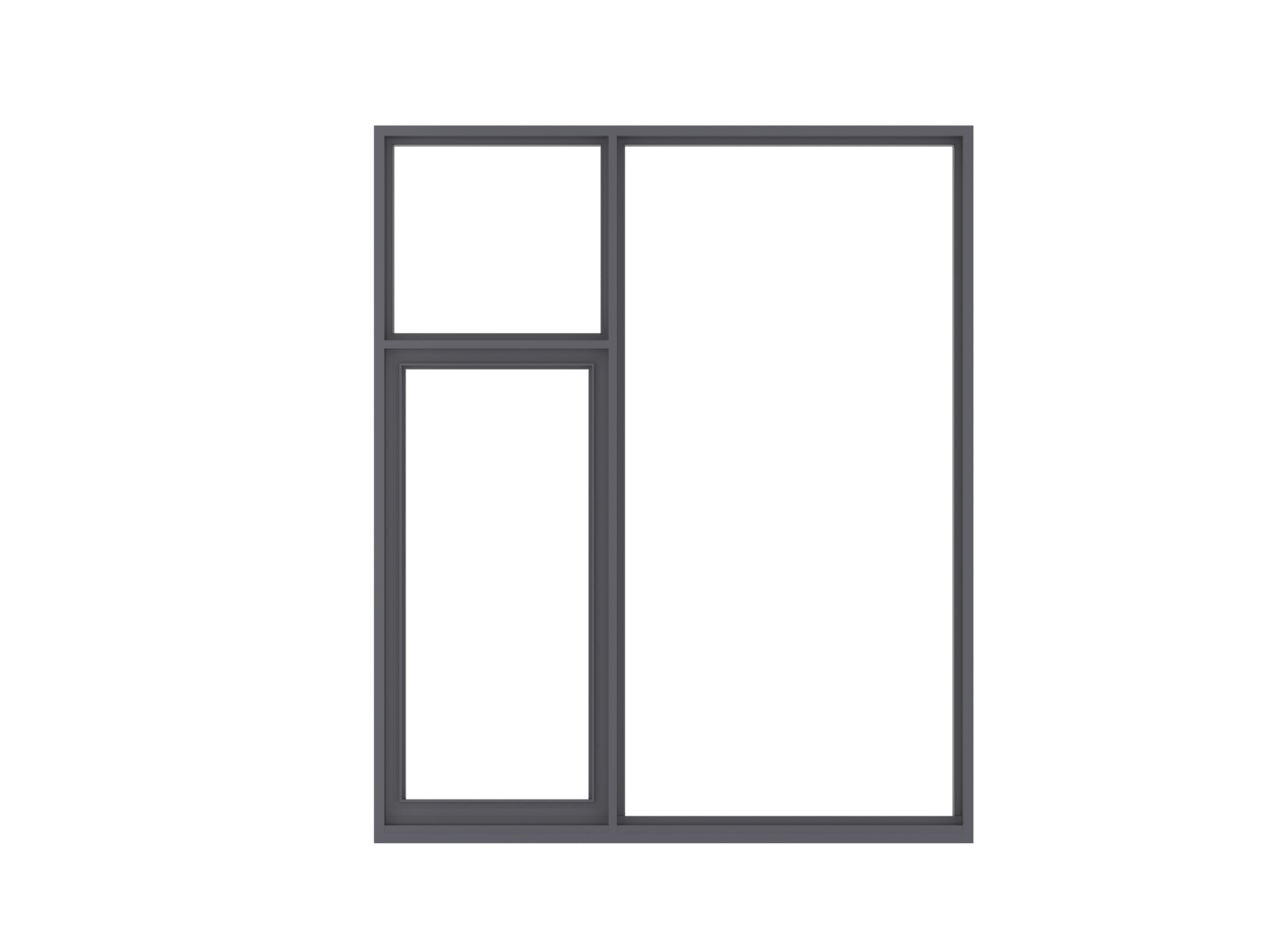

Trango 58 Series Casement & Awning Window
A slimline thermally broken aluminium casement window with an ultra-narrow 27 mm sightline, maximising glass area and natural light while retaining thermal-break efficiency.
Specifications
- Profile wall thickness
- 1.4 mm
- Frame width
- 56.9 mm
- Visible surface width of sash
- glass sash 27 mm
- Available opening styles
- outward casement, top-hung, outward casement with top-hung
- Opening direction
- glass sash outward opening
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Maximum glazing rebate size for fixed glass
- 43.5 mm
- Glazing
- Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
