Thermal performance

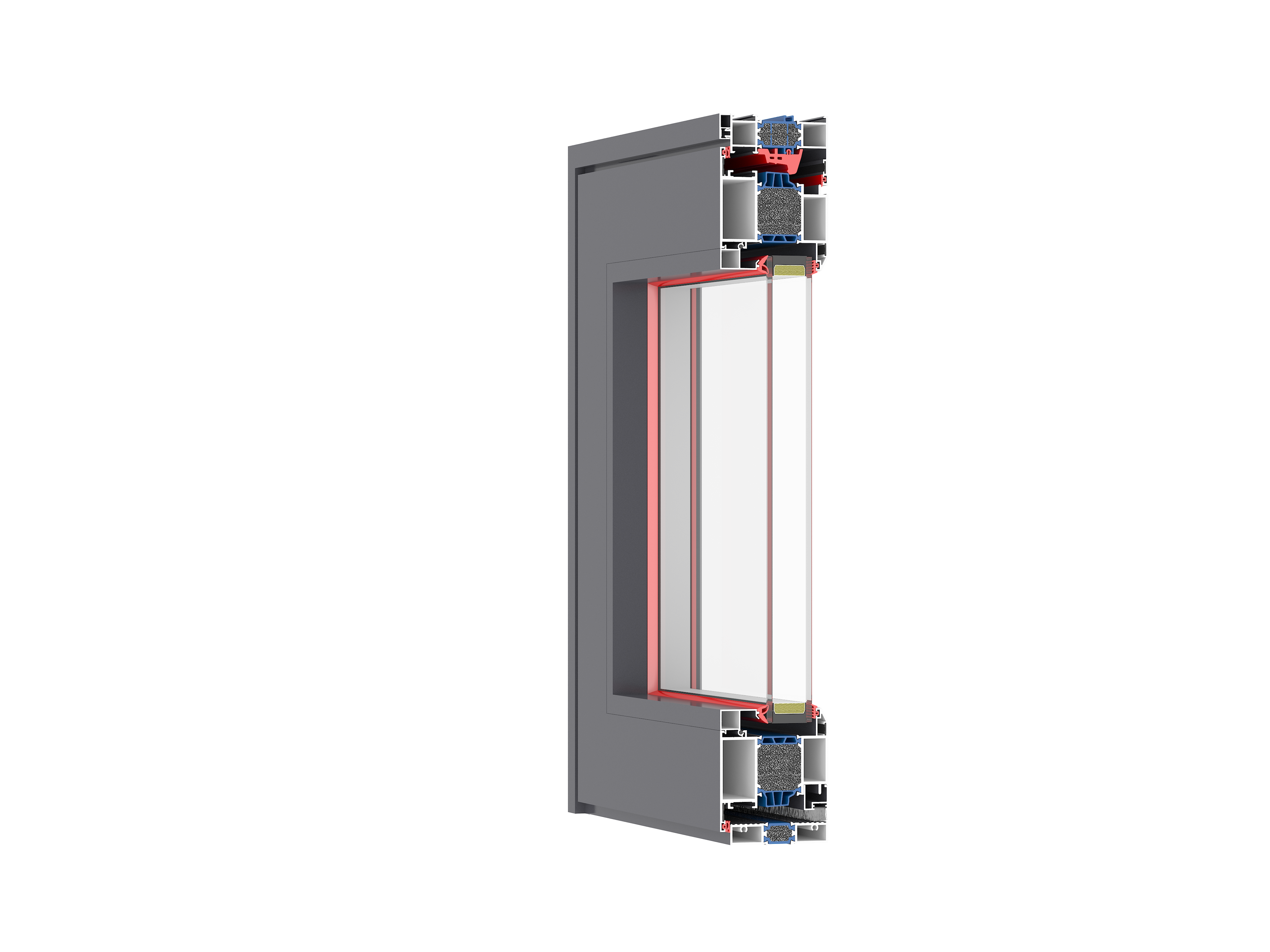

A thermally broken frame holds temperature across the profile.
Slim sightlines
glass sash 93 mm. More glass in the opening, less frame across the view.

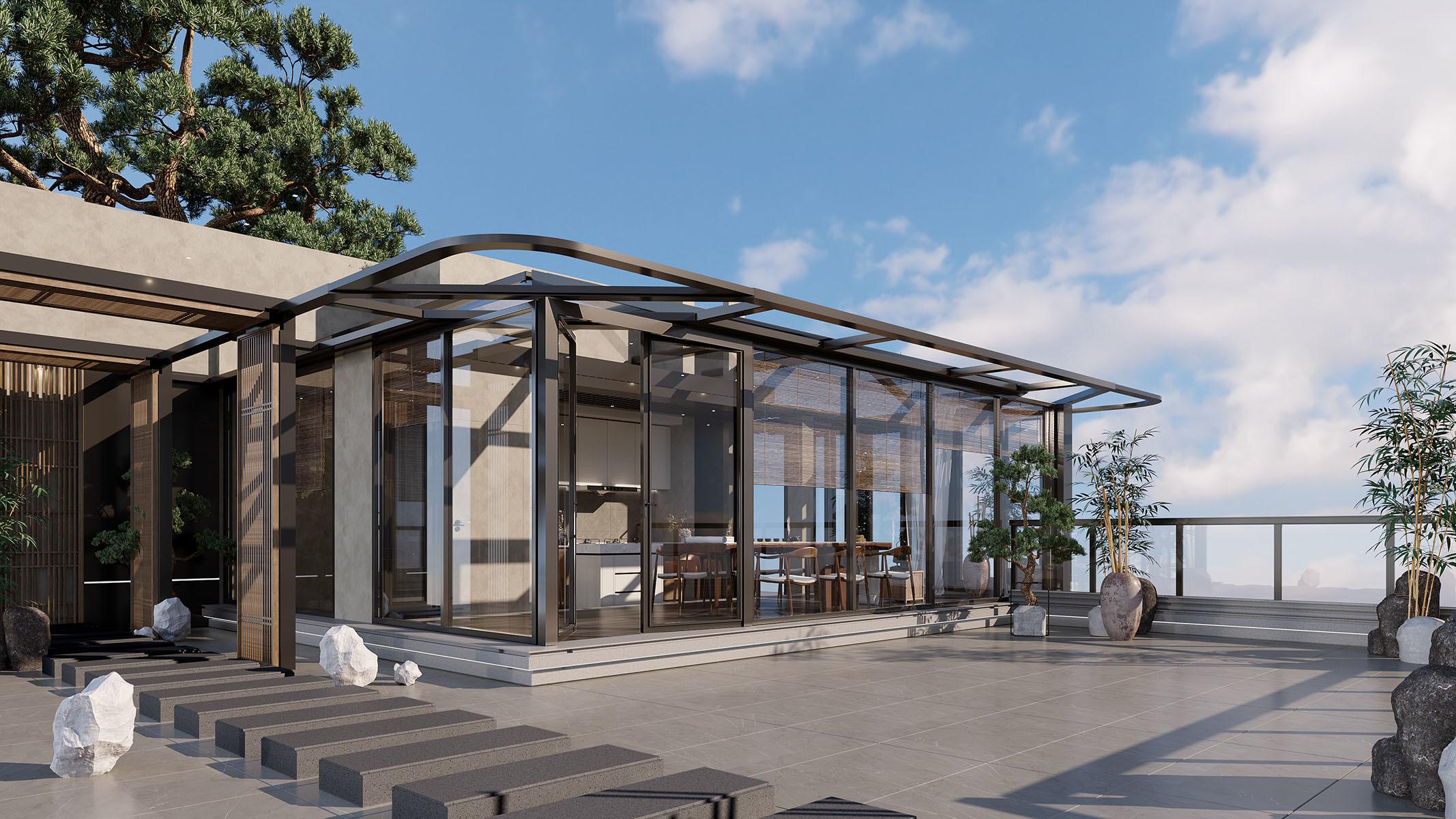

Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Glazing options
Double glazed unit: 5 mm / 27 mm air / 5 mm
Specifications
- Profile wall thickness
- frame 1.8 mm, sash 2.2 mm
- Frame width
- 88 mm
- Sightline
- glass sash 93 mm

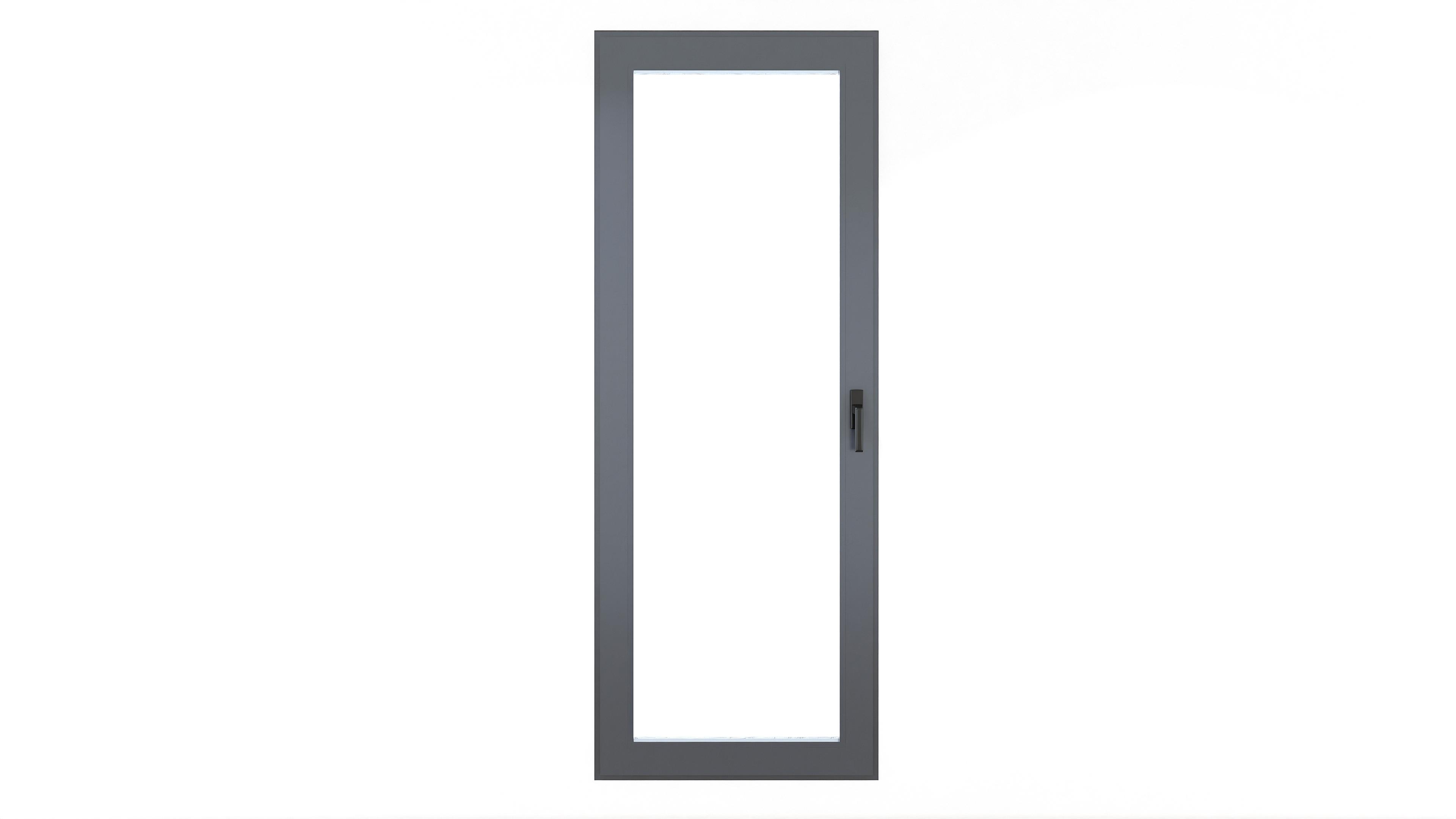

- Available opening styles
- single door, double door, unequal double door
- Opening direction
- glass sash inward
- Standard glass
- 5+27A+5 (fluorocarbon-coated aluminium spacer)
- Glazing method
- Double glazed unit: 5 mm / 27 mm air / 5 mm
- Thermal barrier
- Thermally broken
- Certification
- AS 2047, AS 1288, NCC 2022. Report SMK41714.
Performance
1.82W/m²K
U-value (Uw)
Whole-of-window thermal transmittance.
550Pa
Water resistance
Tested for protection in heavy rain.
5.0kPa
Wind pressure
Serviceability under design wind load.
Rw 35
Acoustic rating
Weighted sound reduction across the system.
1600Pa
Wind pressure (SLS)
Serviceability: everyday strong wind, with the system still operating normally.
4000Pa
Wind pressure (ULS)
Ultimate: the once-in-decades storm the system is tested not to fail under.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
