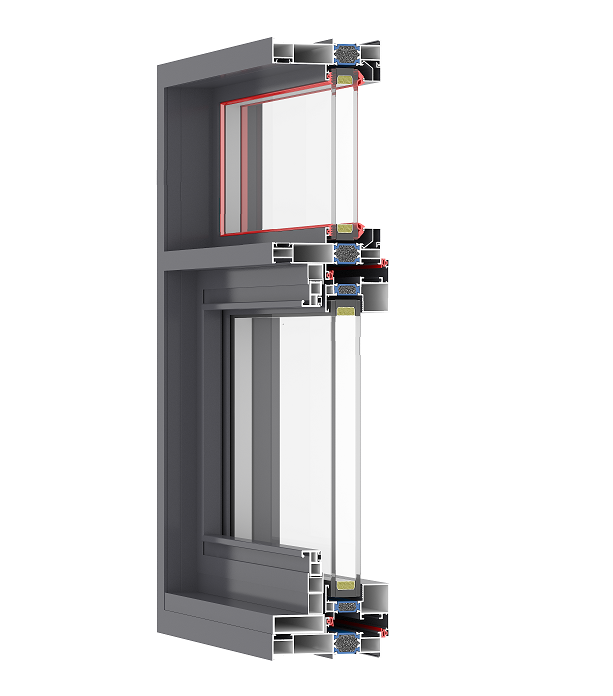

Trango 110 Series Casement & Awning Window
A thermally broken aluminium casement window with an integrated flyscreen and slim 27 mm glass sightlines, balancing light, insulation and insect protection.
Specifications
- Profile wall thickness
- 1.4 mm
- Frame width
- 110 mm
- Visible surface width
- flyscreen sash 56 mm, glass sash 27 mm
- Available opening styles
- outward casement, top-hung, outward casement with top-hung
- Opening direction
- flyscreen sash inward opening, glass sash outward opening
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Maximum glazing rebate size for fixed glass
- 43.5 mm
- Glazing
- Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
