Awning & Casement Windows

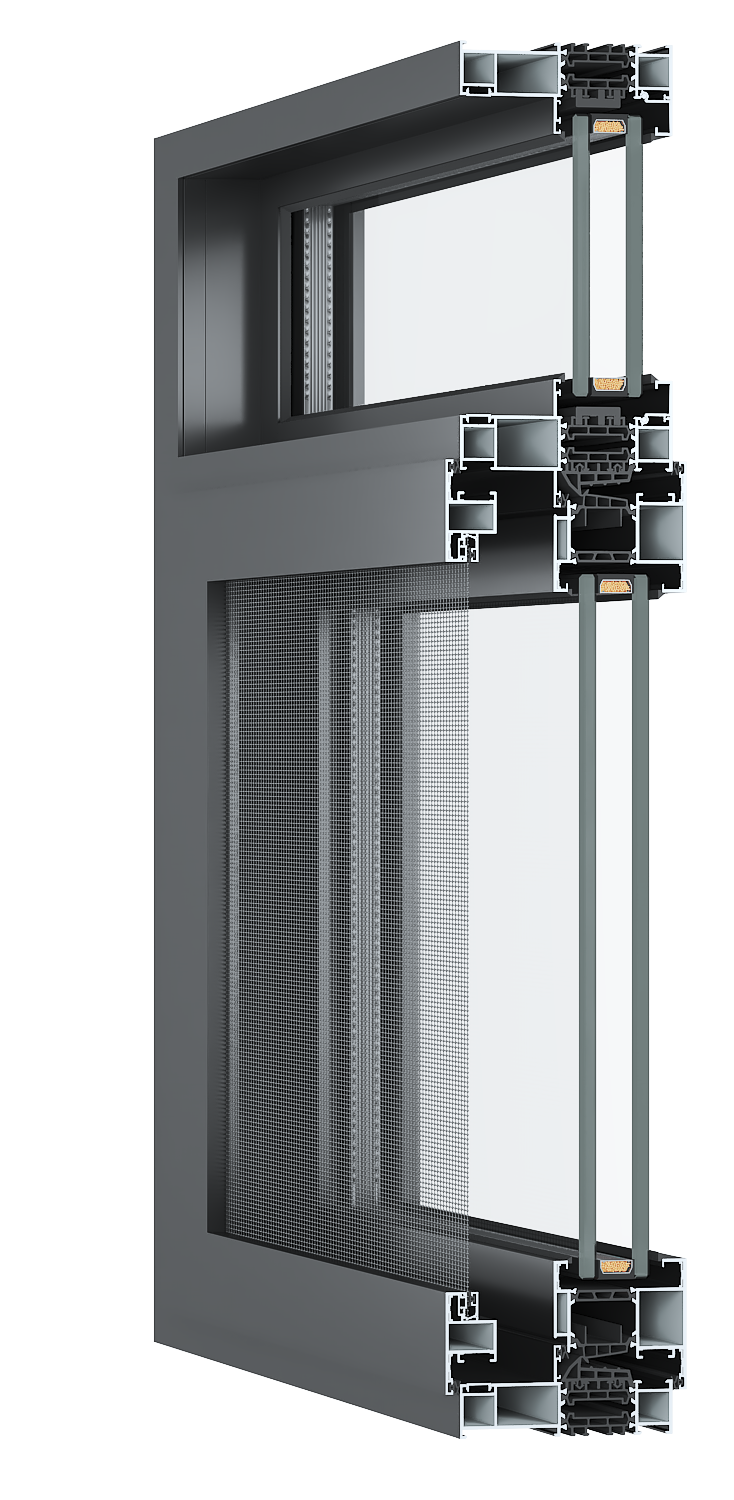

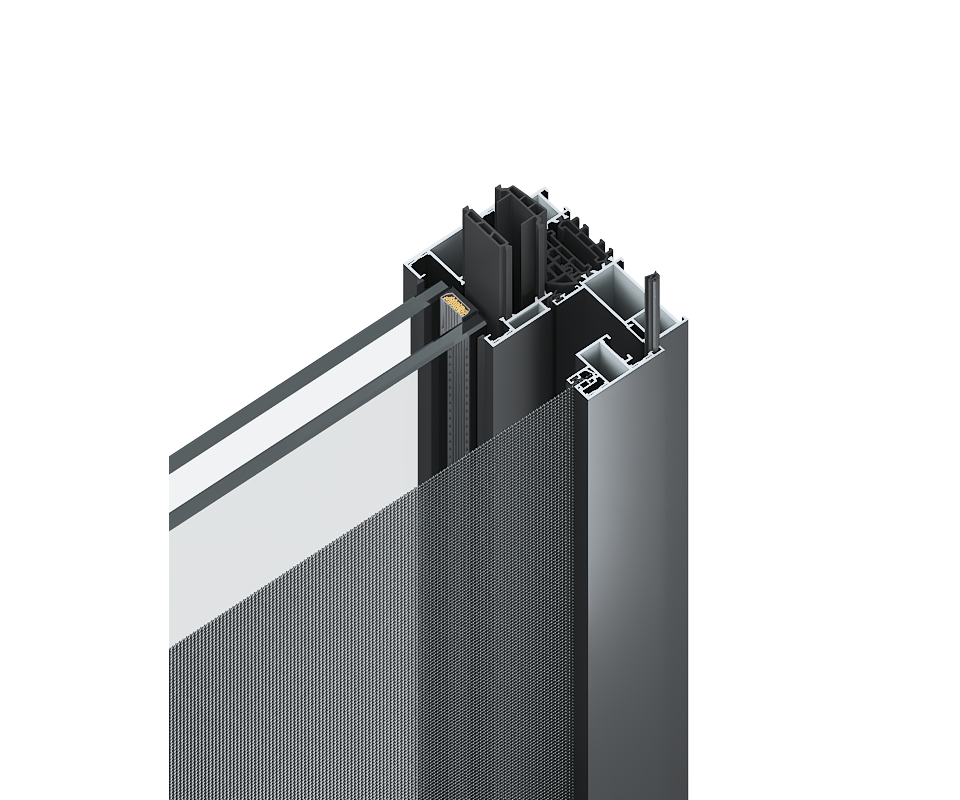

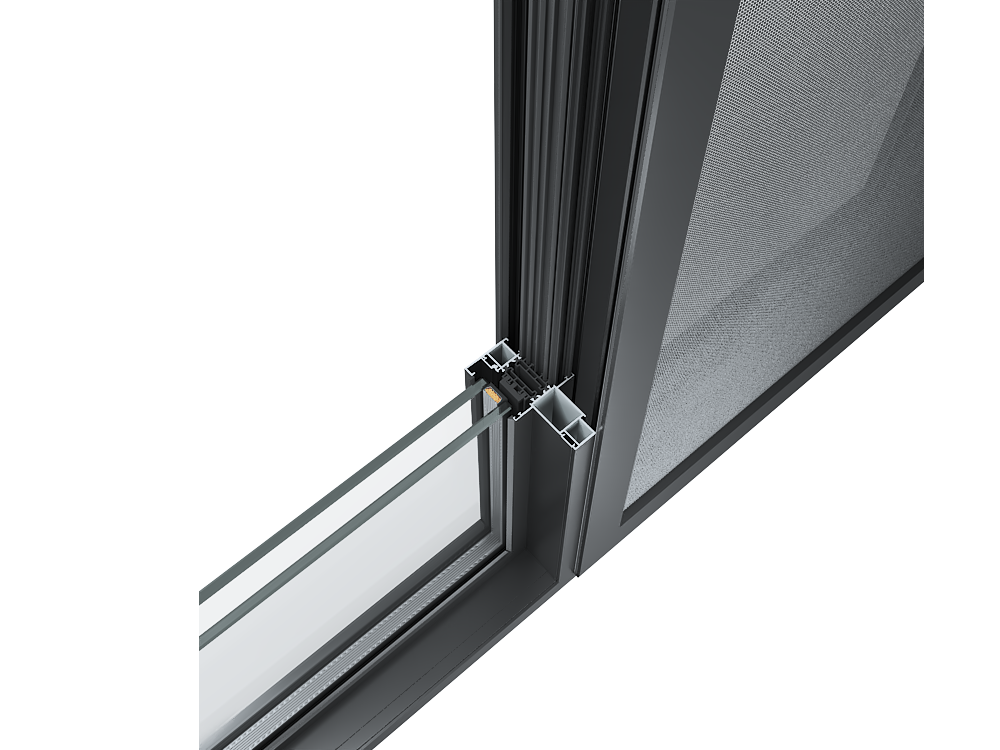

Trango 127 Series Casement & Awning Window
A flagship thermally broken casement window with an integrated flyscreen and triple glazing (5+18A+5+18A+5) for superior thermal and acoustic insulation.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 125.5 mm
- Visible sash dimensions
- flyscreen sash 56 mm, glass sash 72 mm
- Available opening modes
- outward casement, top-hung, outward casement with top-hung
- Opening direction
- flyscreen sash inward opening, glass sash outward opening
- Standard glass
- 5+18A+5+18A+5 (fluorocarbon-coated aluminium spacer)
- Maximum fixed glass rebate size
- 64 mm
- Thermal barrier width
- outer frame 44 mm, sash 39 mm
- Standard flyscreen mesh
- 0.45 mm diameter, 15-mesh stainless steel mesh
- Glazing
- Triple glazed unit: 5 / 18 mm air / 5 / 18 mm air / 5 mm
- Thermal barrier
- Thermally broken
