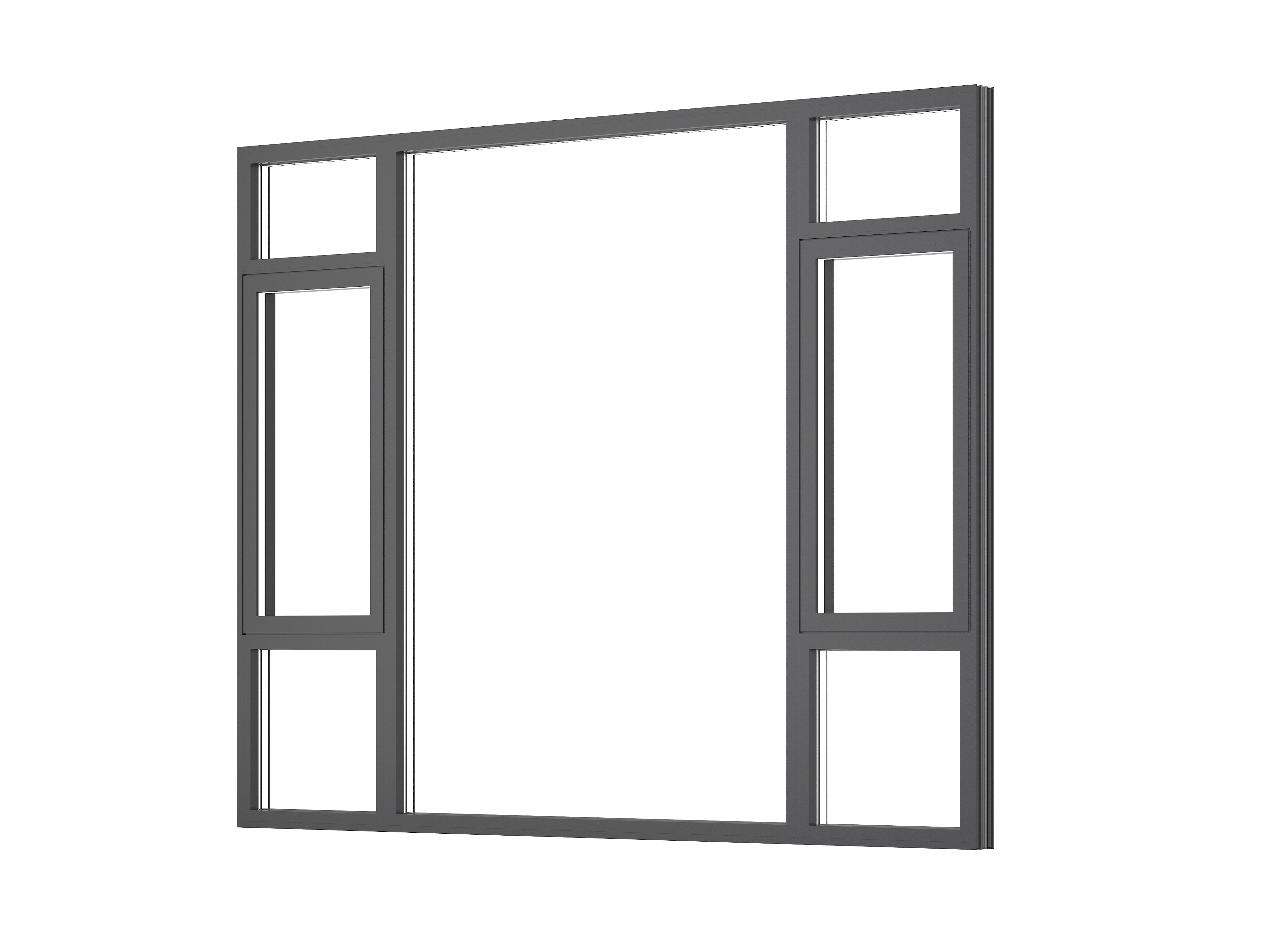

Trango 90 Series Casement & Awning Window
A thermally broken slimline casement window with a 20 mm sightline, blending minimalist aesthetics with double-glazed thermal performance.
Specifications
- Profile wall thickness
- 1.8 mm
- Frame width
- 88 mm
- Visible surface width of sash
- glass sash 20 mm
- Available opening styles
- outward casement, top-hung
- Opening direction
- glass sash outward opening
- Standard glass
- 5+27A+5 (fluorocarbon-coated aluminium spacer)
- Maximum glazing rebate size for fixed glass
- 58 mm

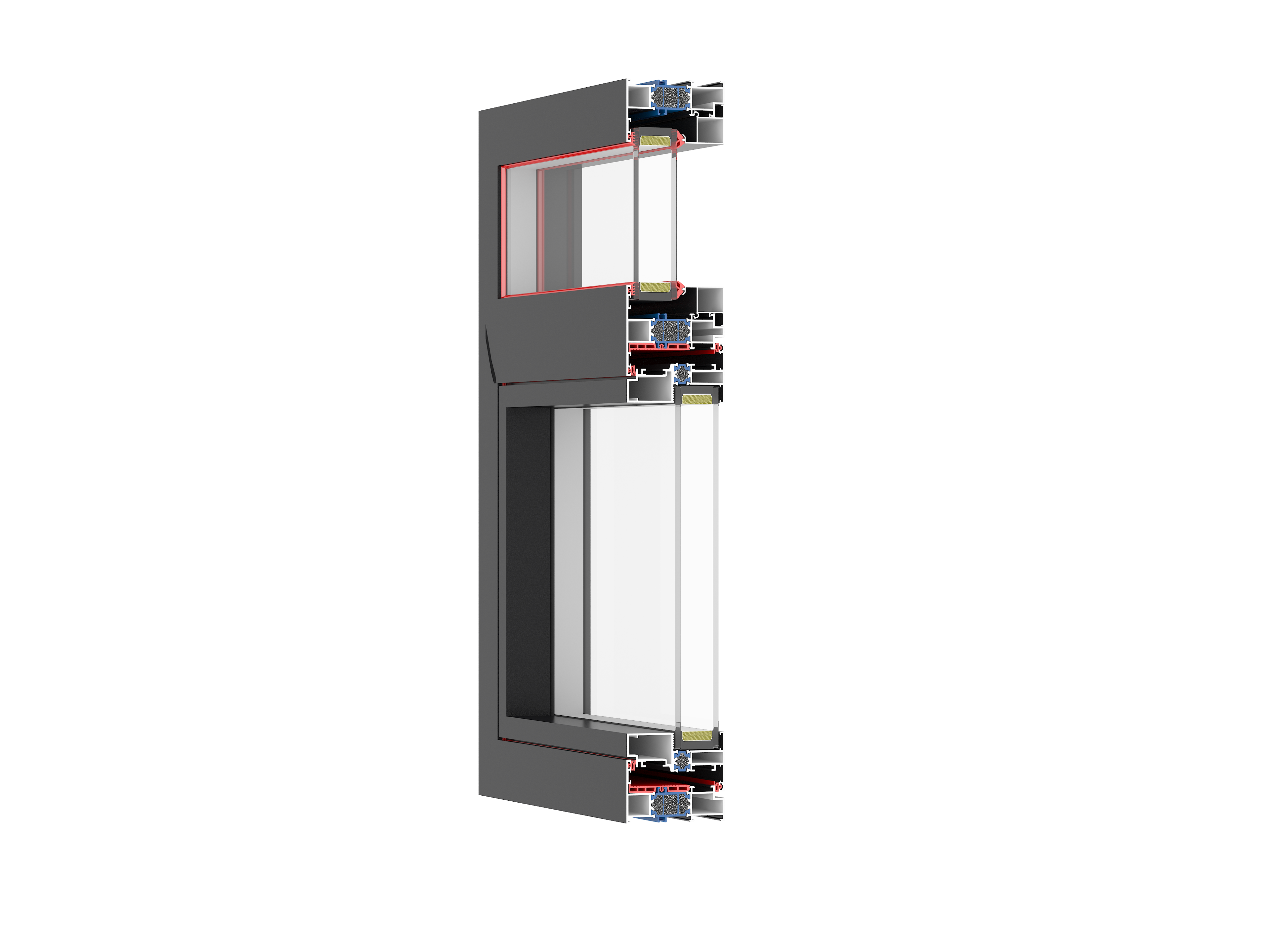

- Thermal barrier width
- outer frame 35.3 mm, sash 14.8 mm
- Glazing
- Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
