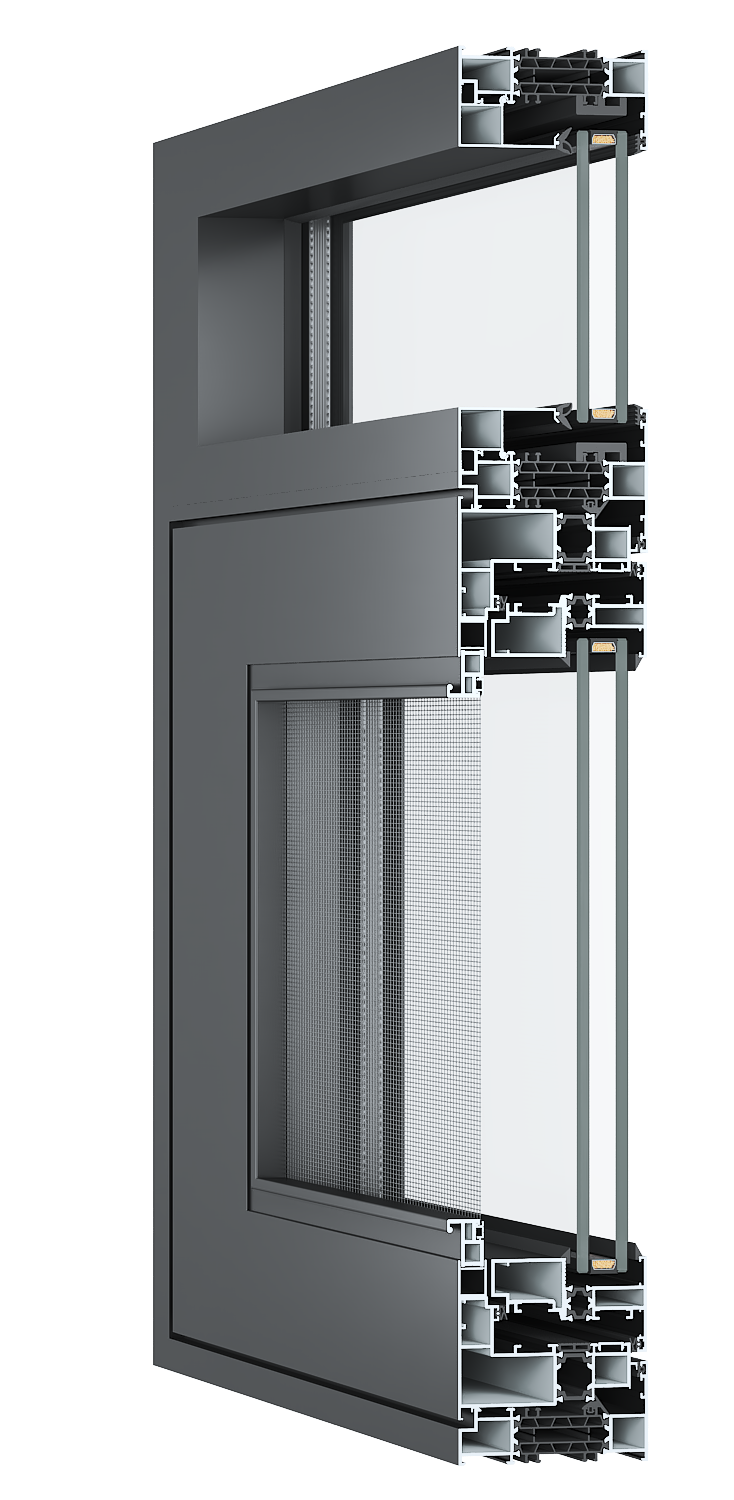

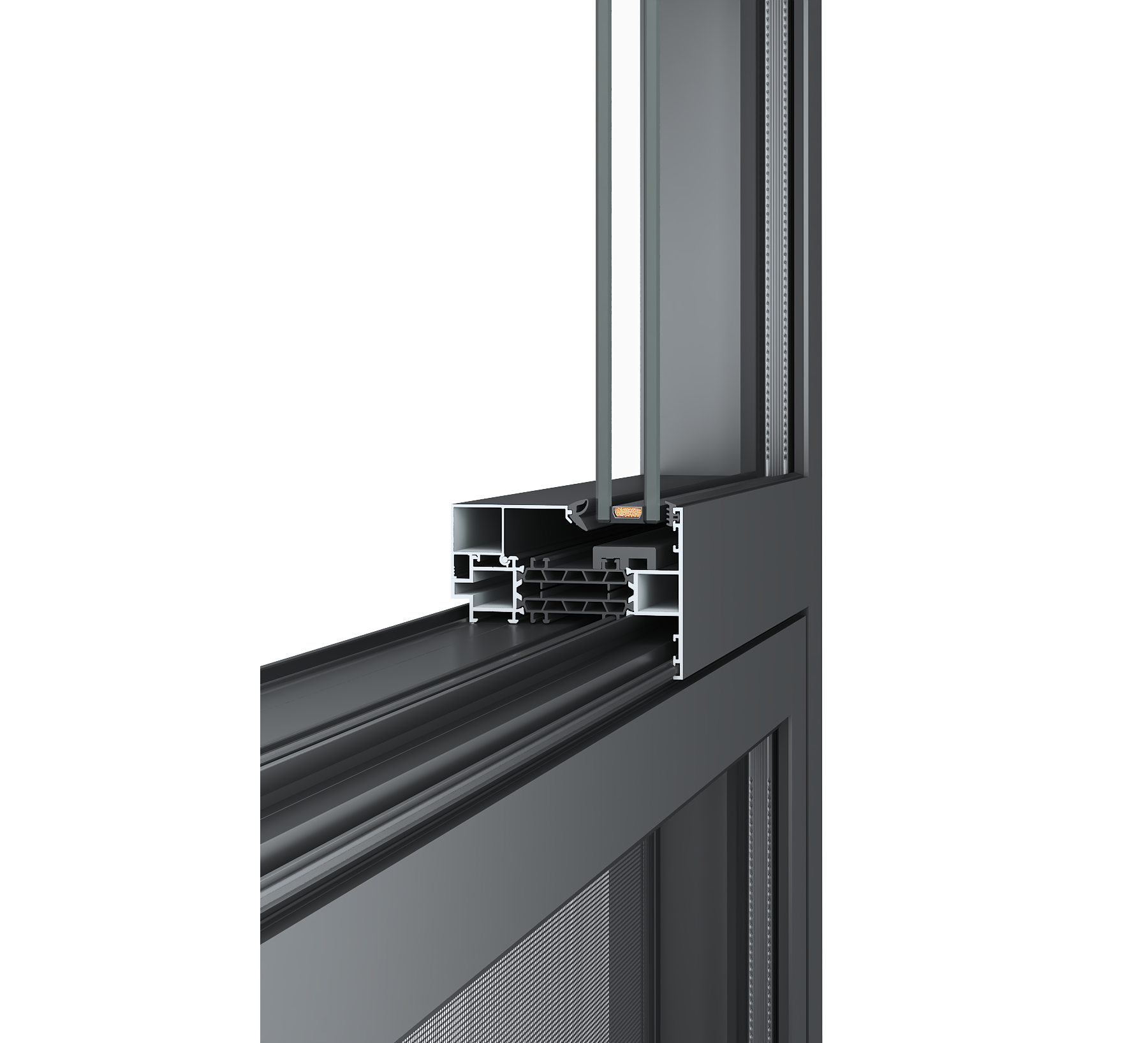

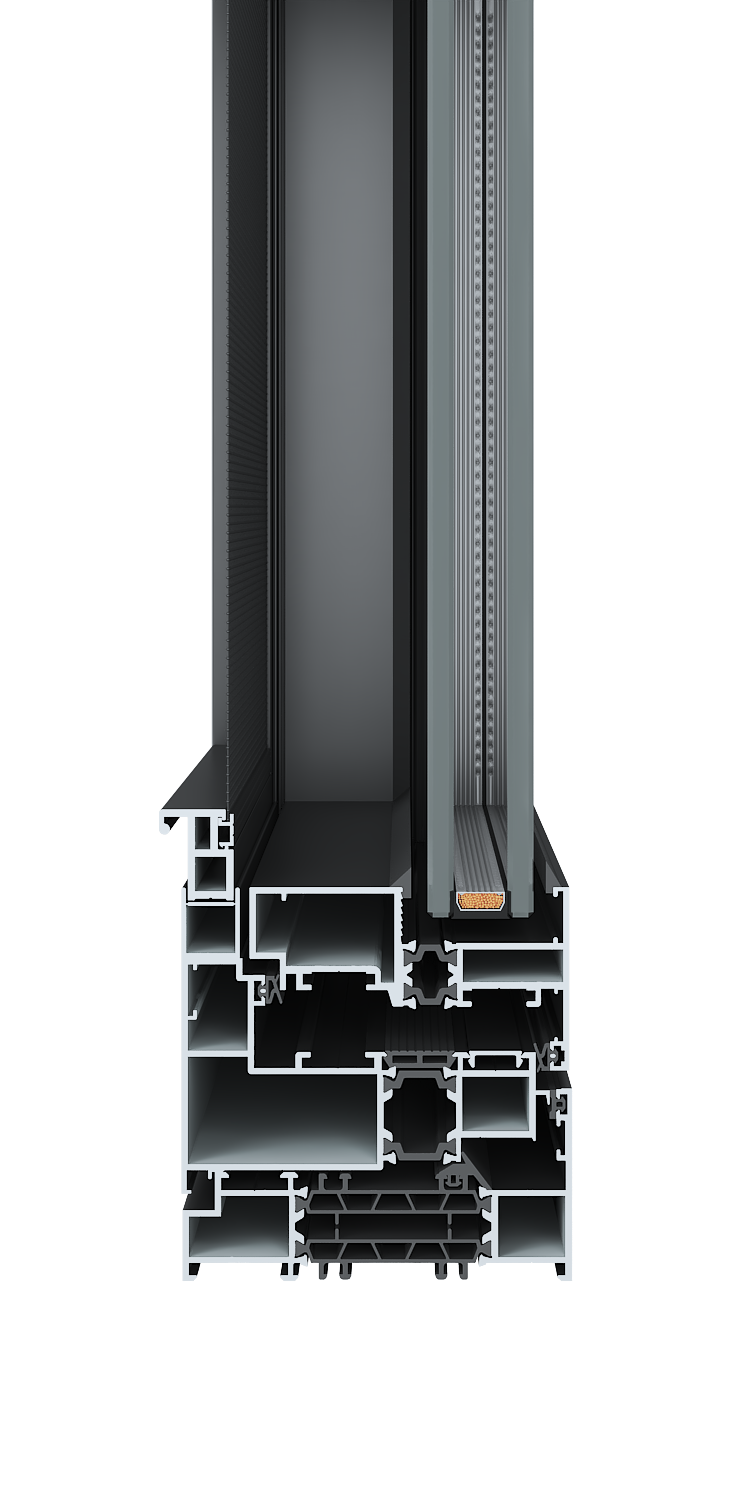

Trango T8 Series Casement & Awning Window
A thermally broken American-style awning/casement window with smooth crank-out operation and a detachable flyscreen, ideal for easy one-handed ventilation.
Specifications
- Profile wall thickness
- 1.8 mm
- Frame width
- 107 mm
- Visible sash dimension
- glass sash 20 mm
- Available opening modes
- outward casement / top-hung
- Opening direction
- glass sash outward opening, flyscreen sash fixed & detachable
- Standard glass
- 5+27A+5 (fluorocarbon-coated aluminium spacer)
- Maximum fixed glass rebate size
- 78 mm
- Thermal barrier width
- outer frame 54 mm, sash 14.8 mm
- Glazing
- Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
