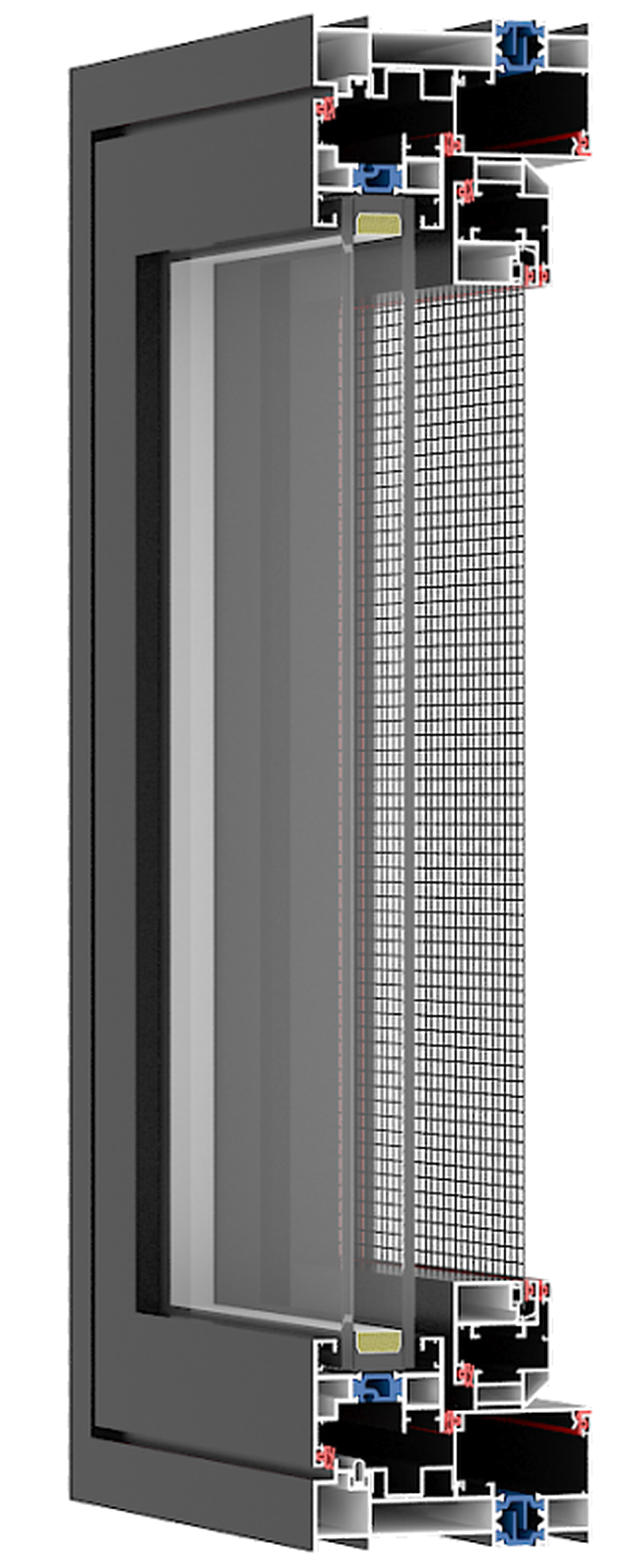

Thermal performance
A 20 mm thermal barrier holds temperature across the frame.
Integrated insect screen
Screening built into the frame rather than added over it.
Slim sightlines
central meeting rail 52.5 mm. More glass in the opening, less frame across the view.
Glazing options
Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 115 mm
- Sightline
- central meeting rail 52.5 mm
- Standard glass
- 5+20A+5
- Thermal barrier width
- 20 mm
- Standard screen mesh
- 0.45 mm wire, 15 mesh, 304 stainless steel black diamond (grey optional)
- Hardware colours
- black, silver
- Standard handle lock
- HOPPE antibacterial handle with base
- Standard pulleys
- side-pressing amber pulleys / typhoon-resistant anti-swing guide pulleys
- Lock points
- double-layer compression lock points and keepers
- Glazing method
- Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
- Thermal barrier
- Thermally broken, 20 mm
- Certification
- AS 2047, AS 1288, NCC 2022. Report 250828093GZC-001.
Performance
1600Pa
Wind pressure (SLS)
Serviceability: everyday strong wind, with the system still operating normally.
5300Pa
Wind pressure (ULS)
Ultimate: the once-in-decades storm the system is tested not to fail under.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Sliding Windows
Trango 105 Series Ultra-Narrow Sliding Window
A thermally broken slimline sliding window with narrow 35 mm sightlines, delivering smooth operation and a contemporary minimalist look.
View Product

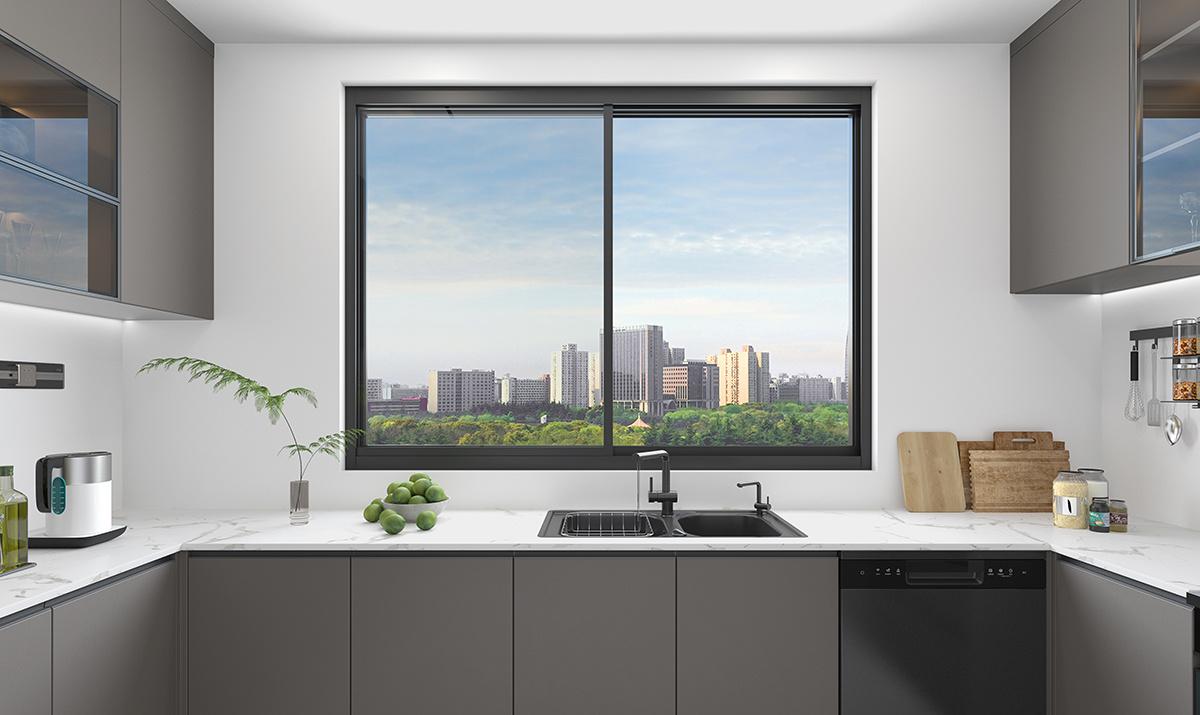

Trango 142 Series Ultra-Narrow Sliding Window
