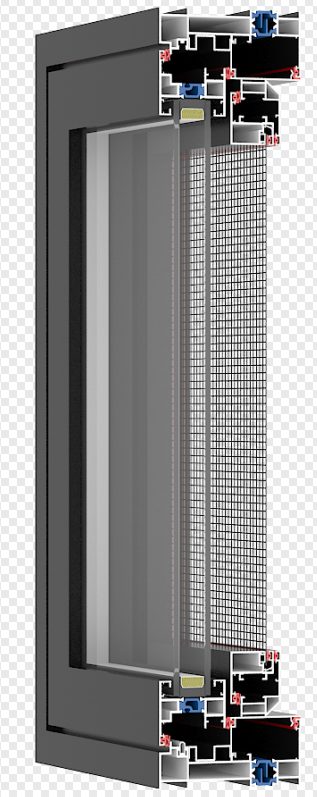

Trango 115 Series Sliding Window
A thermally broken side-press sliding window with premium HOPPE hardware and typhoon-resistant pulleys, engineered for tight sealing and heavy-duty performance.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 115 mm
- Visible sash size
- central meeting rail 52.5 mm
- Standard glass
- 5+20A+5
- Thermal barrier width
- 20 mm
- Standard flyscreen mesh
- 0.45 mm wire diameter, 15 mesh, 304 stainless steel black diamond mesh (grey available as an option)
- Hardware colours
- black, silver
- Standard handle lock
- HOPPE antibacterial handle with base
- Standard pulleys
- custom side-pressing amber pulleys / custom typhoon-resistant anti-swing guide pulleys
- Standard lock points and keepers
- double-layer compression lock points and keepers specially designed for sliding side-pressing windows
- Glazing
- Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
