Sliding Windows

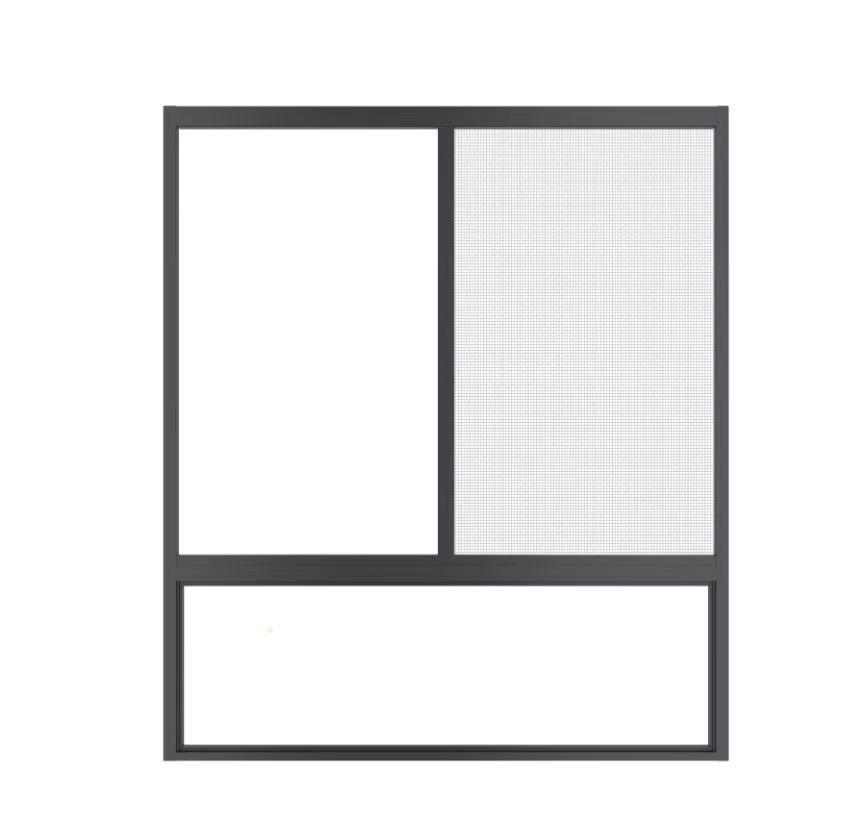

Trango 142 Series Sliding Window

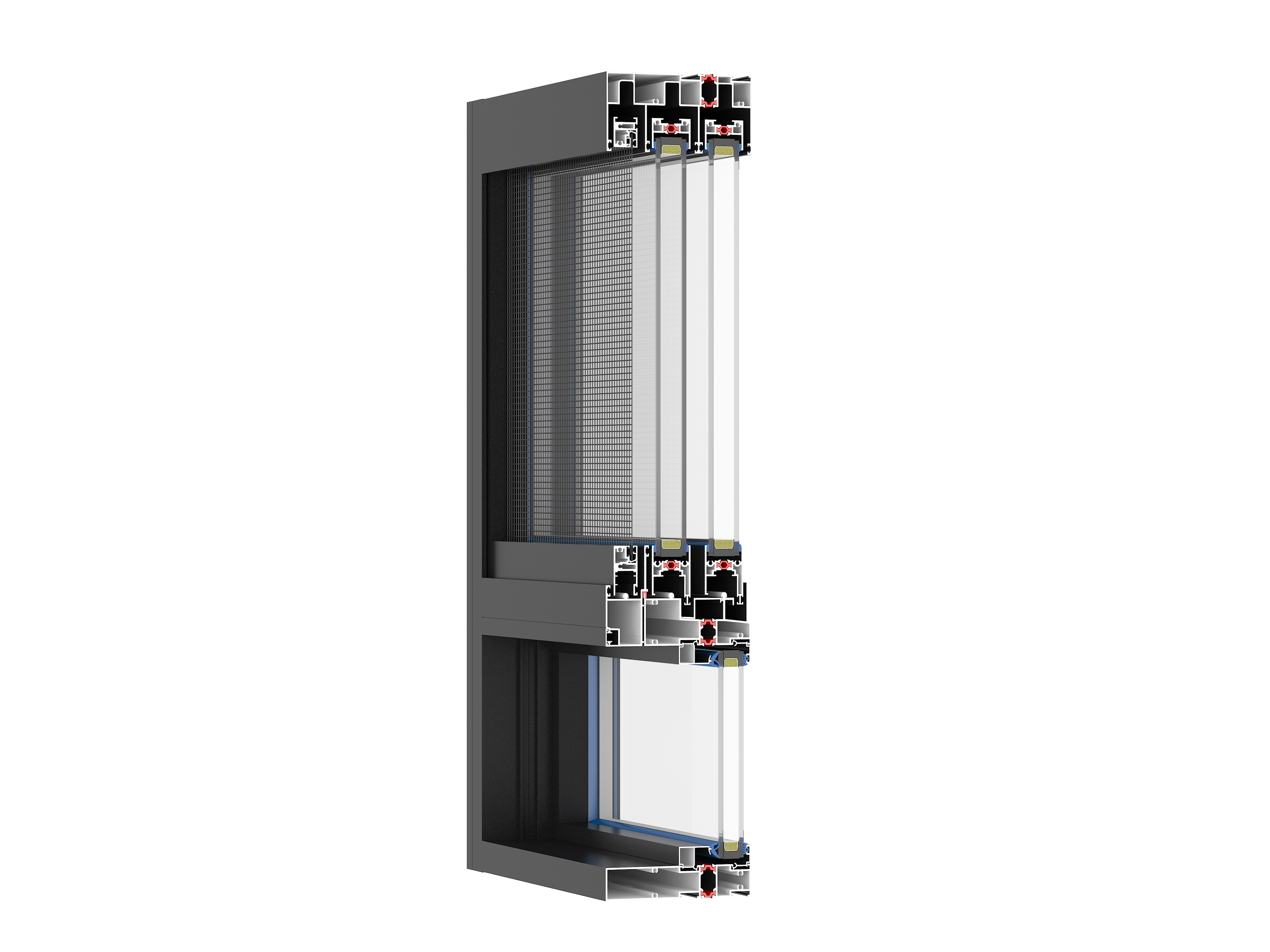

A thermally broken slimline sliding window with ultra-narrow 35 mm meeting rails, available in 2- and 3-track configurations for expansive, light-filled openings.
Specifications
- Profile wall thickness
- 1.8 mm
- Frame width
- 104 mm for 2-track, 141.5 mm for 3-track
- Visible face dimension
- middle meeting rail 35 mm
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Maximum notch size for fixed glass
- 50 mm
- Glazing
- Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
More Sliding Windows
Trango 110 Series Sliding Window
Profile wall thickness: 1.4 mm for outer frame & sash, 1.8 mm for bottom rail · Frame width: 74 mm for 2-track, 110 mm for 3-track · Visible face dimension: middle meeting rail 32 mm
View Product
Trango 105 Series Sliding Window
Profile wall thickness: 1.8 mm · Frame width: 104 mm for 2-track, 104 mm for 3-track · Visible face dimension of sash: middle meeting rail 35 mm
View Product
Trango 115 Series Sliding Window
Profile wall thickness: 2.0 mm · Frame width: 115 mm · Visible sash size: central meeting rail 52.5 mm
View Product
