Casement & Tilt-and-Turn Windows
Inward-opening versatility with secure tilt ventilation.
5 systems in this range.

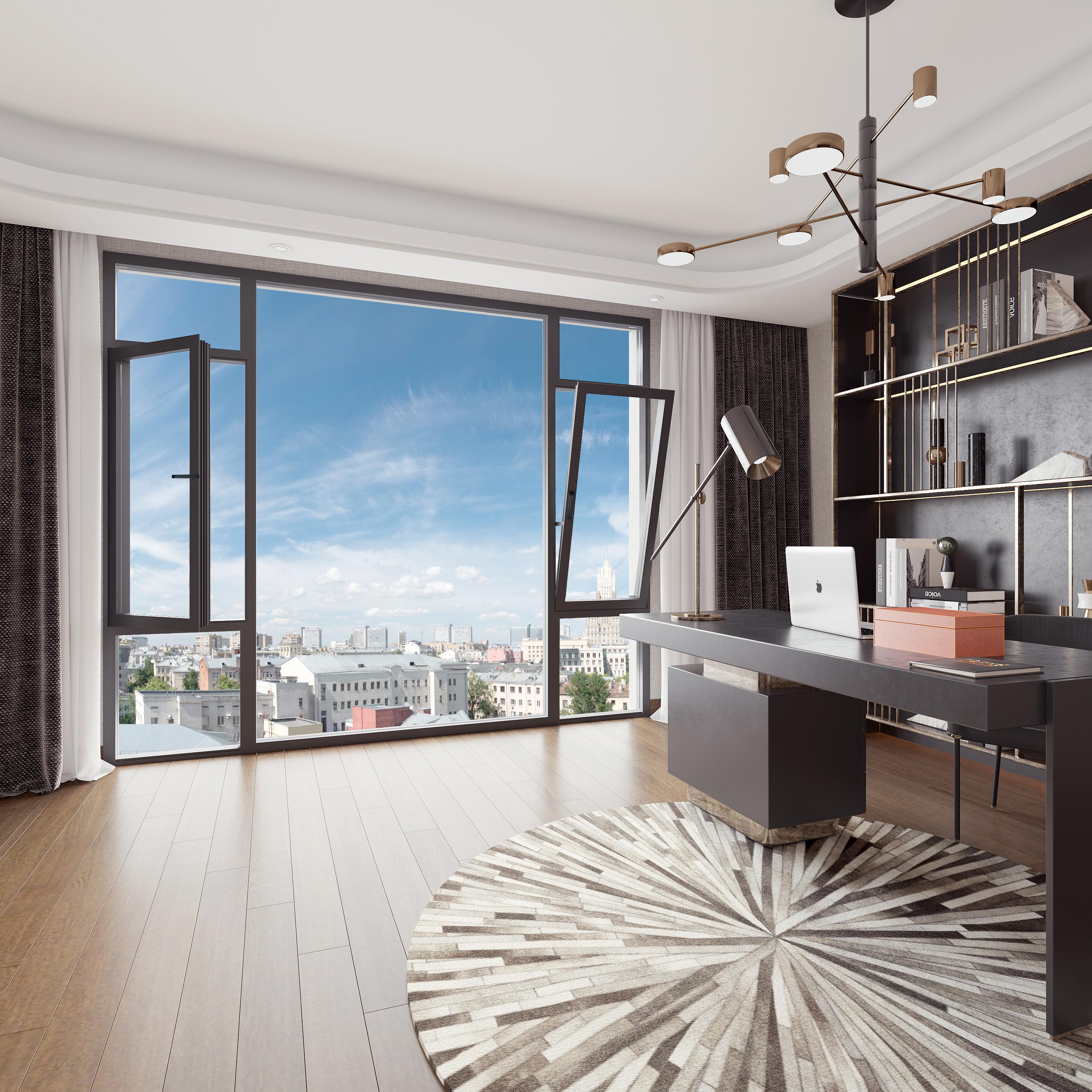

Trango 88 Series
Trango 88 Series Tilt & Turn Window with Integrated Screen
A thermally broken inward-opening casement and tilt-and-turn window with integrated flyscreen - secure tilt ventilation plus easy internal cleaning.
- Frame width
- 88 mm
- Sightline
- screen sash 31 mm, glass sash 57 mm
- Thermal barrier
- Thermally broken
Trango 88 Series
Trango 88 Series Single Tilt & Turn Window
A thermally broken inward-opening casement/tilt-and-turn window with double glazing, offering secure ventilation and effortless interior cleaning.
- Frame width
- 88 mm
- Sightline
- glass sash 61.8 mm
- Thermal barrier
- Thermally broken

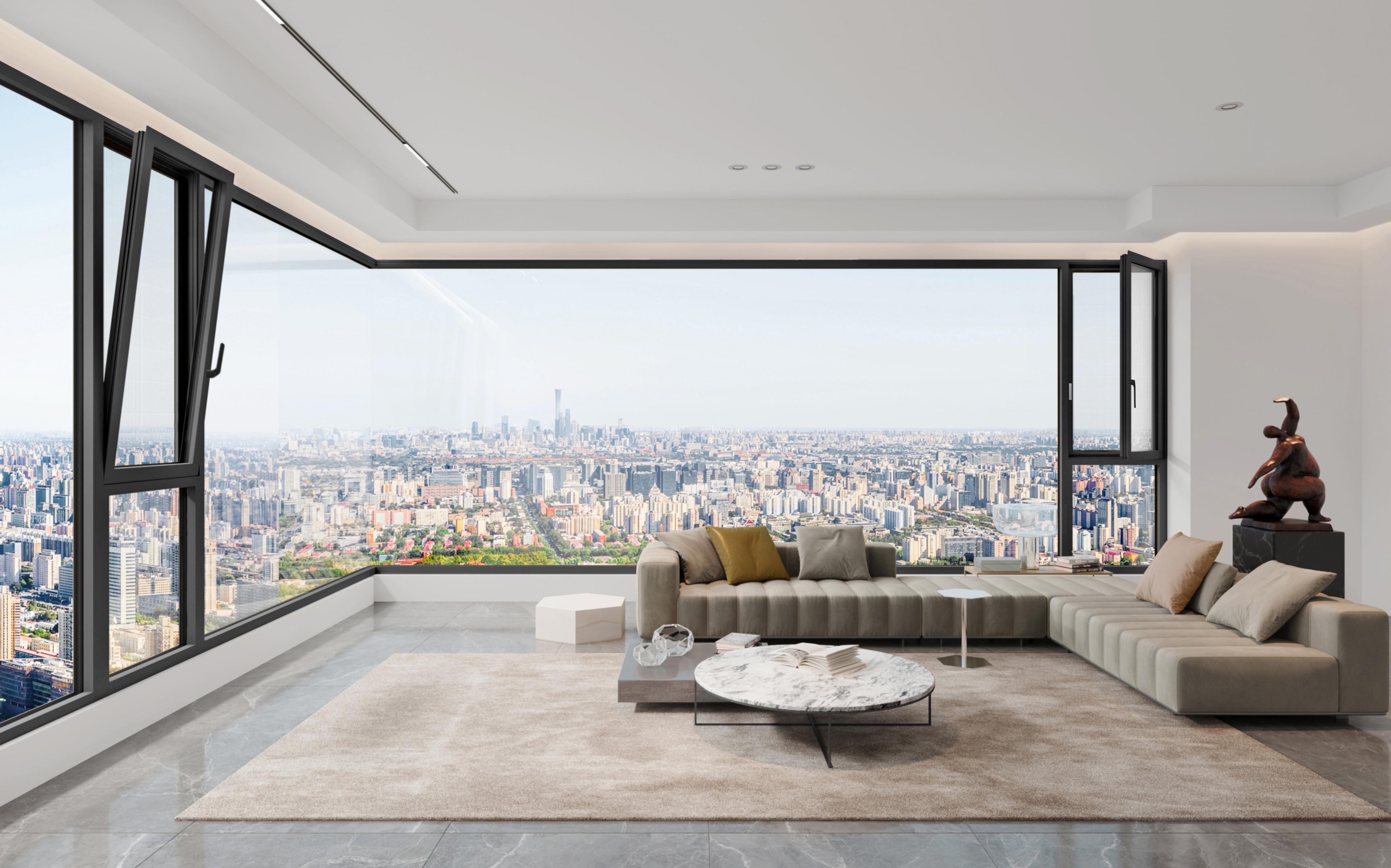

Trango E2 Series
Trango E2 Series Double Tilt & Turn Window
A thermally broken double inward-opening casement/tilt-and-turn window with a compact 81 mm frame, combining flexible ventilation with easy maintenance.
- Frame width
- 81 mm
- Sightline
- screen sash 31 mm, glass sash 57 mm
- Thermal barrier
- Thermally broken

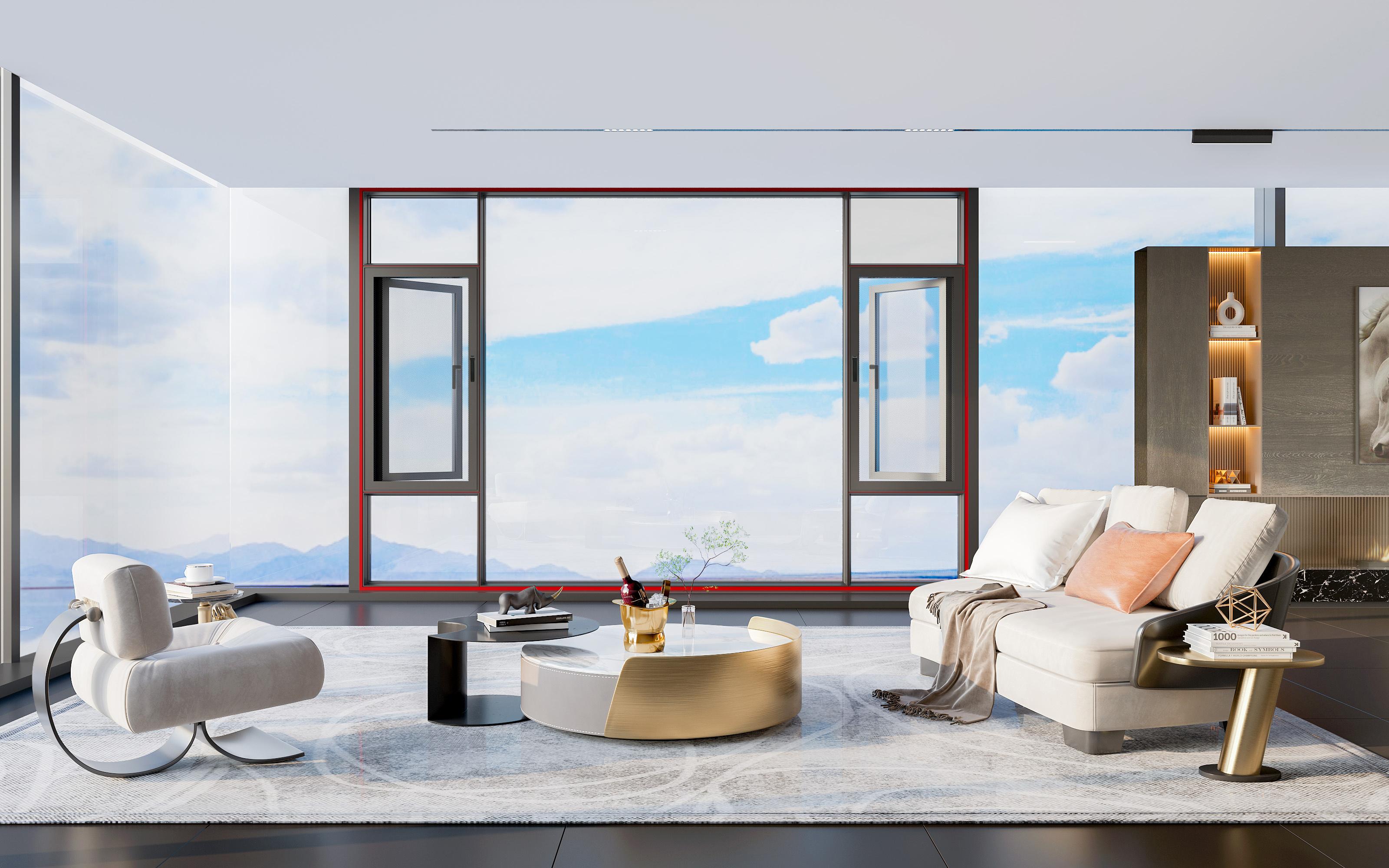

Trango 98 Series
Trango 98 Series Passive-House Tilt & Turn Window
A Passive House-grade thermally broken inward-opening window with triple glazing (5+15A+5+15A+6) for outstanding energy efficiency and comfort.
- Frame width
- 97 mm
- Sightline
- glass sash 61.8 mm
- Thermal barrier
- Thermally broken

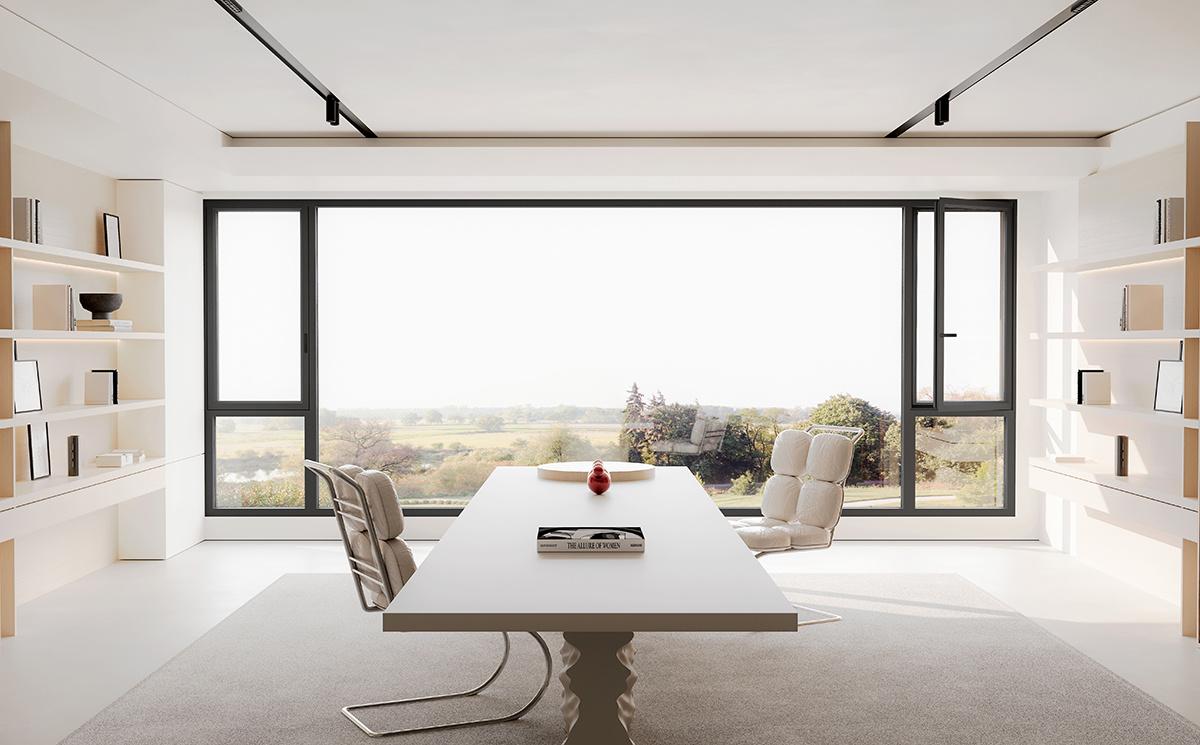

Trango T1 Series
Trango T1 Series Double Tilt & Turn Window with Integrated Screen
A thermally broken inward-opening casement/tilt-and-turn window with an integrated flyscreen, pairing high insulation with built-in insect protection.
- Frame width
- 97 mm
- Sightline
- screen sash 31 mm, glass sash 57 mm
- Thermal barrier
- Thermally broken
The range, side by side
The same fields for every system in this range. Every system is certified to AS 2047 and every one has been tested; where a report number is listed, that document is the one on file. A figure shown as not published is one we have not transcribed onto this site. Ask and we will send you the report.
| System | Thermal break | Glazing | U-value (Uw) | Acoustic | AS 2047 | Frame width | Sightline |
|---|---|---|---|---|---|---|---|
| Trango 88 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 88 mm | screen sash 31 mm, glass sash 57 mm |
| Trango 88 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 88 mm | glass sash 61.8 mm |
| Trango E2 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | Certified | 81 mm | screen sash 31 mm, glass sash 57 mm |
| Trango 98 Series | Thermally broken | Triple glazed unit: 5 / 15 mm air / 5 / 15 mm air / 6 mm | Not published | Not published | Certified | 97 mm | glass sash 61.8 mm |
| Trango T1 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 97 mm | screen sash 31 mm, glass sash 57 mm |
Technical documents for this range.
Drawings, manuals and certificates are issued on request, so the revision you receive is the current one.
Not sure which system fits?
Send your drawings and we will specify the right one for the opening.
