Thermal performance
A thermally broken frame holds temperature across the profile.
Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Glazing options
Double glazed unit: 5 mm / 20 mm air / 5 mm
Certified performance
Certified to AS 2047. Certificate available on request.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 109 mm
- Available opening styles
- outward casement, top-hung, outward opening top-hung
- Opening direction
- glass sash outward, screen sash inward
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Glazing method
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken
- Certification
- AS 2047, AS 1288, NCC 2022. Report SMK41714.
Performance
1600Pa
Wind pressure (SLS)
Serviceability: everyday strong wind, with the system still operating normally.
4000Pa
Wind pressure (ULS)
Ultimate: the once-in-decades storm the system is tested not to fail under.
600Pa
Water resistance
Tested for protection in heavy rain.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Hinged Doors (Outward Opening)

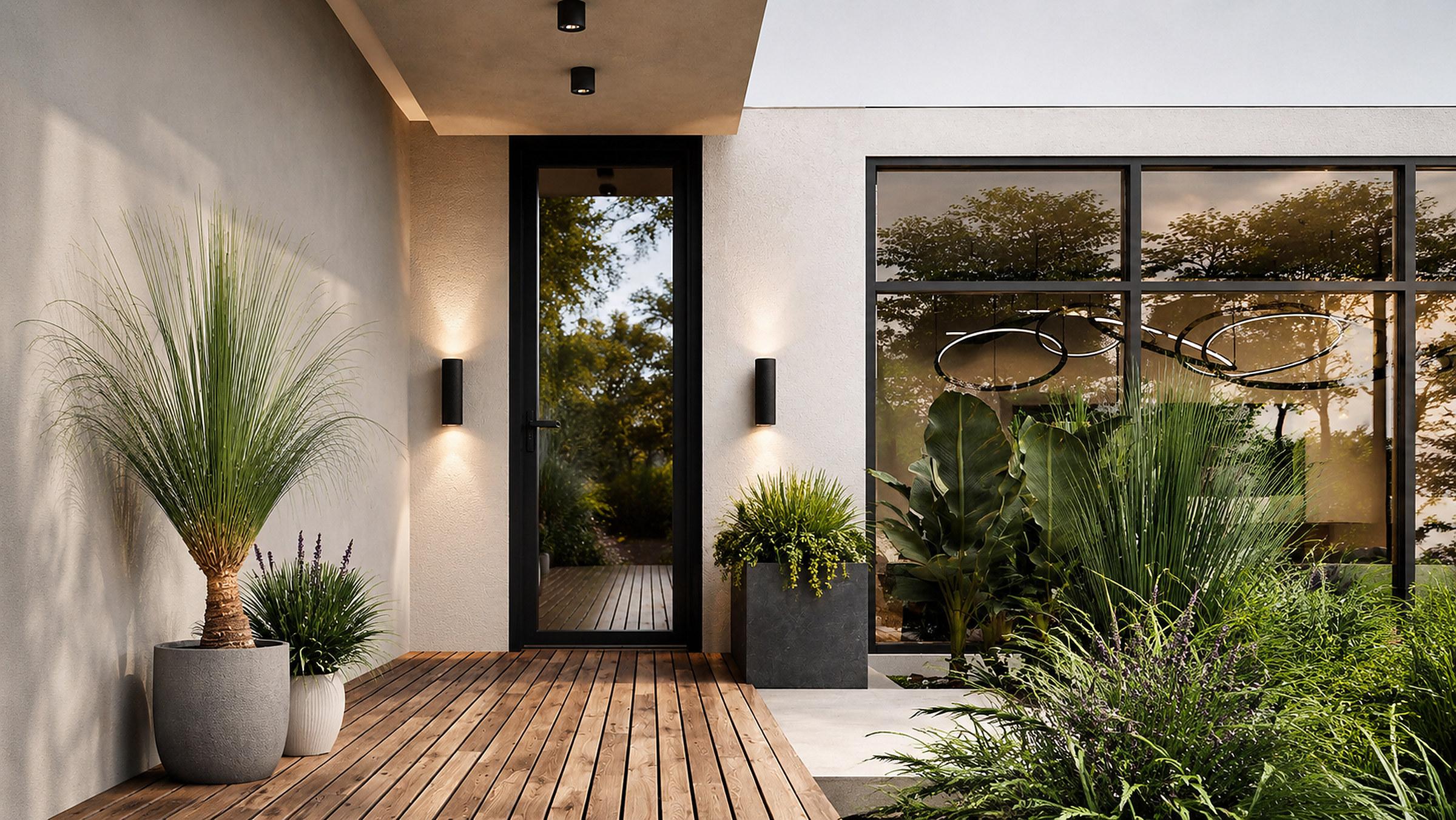

Trango 88 Series Outward Hinged Door
A thermally broken aluminium hinged door with a robust 88 mm frame and 2.2 mm sash walls, available as single, double or unequal-double - a solid entry or patio door for the Australian climate.
View Product

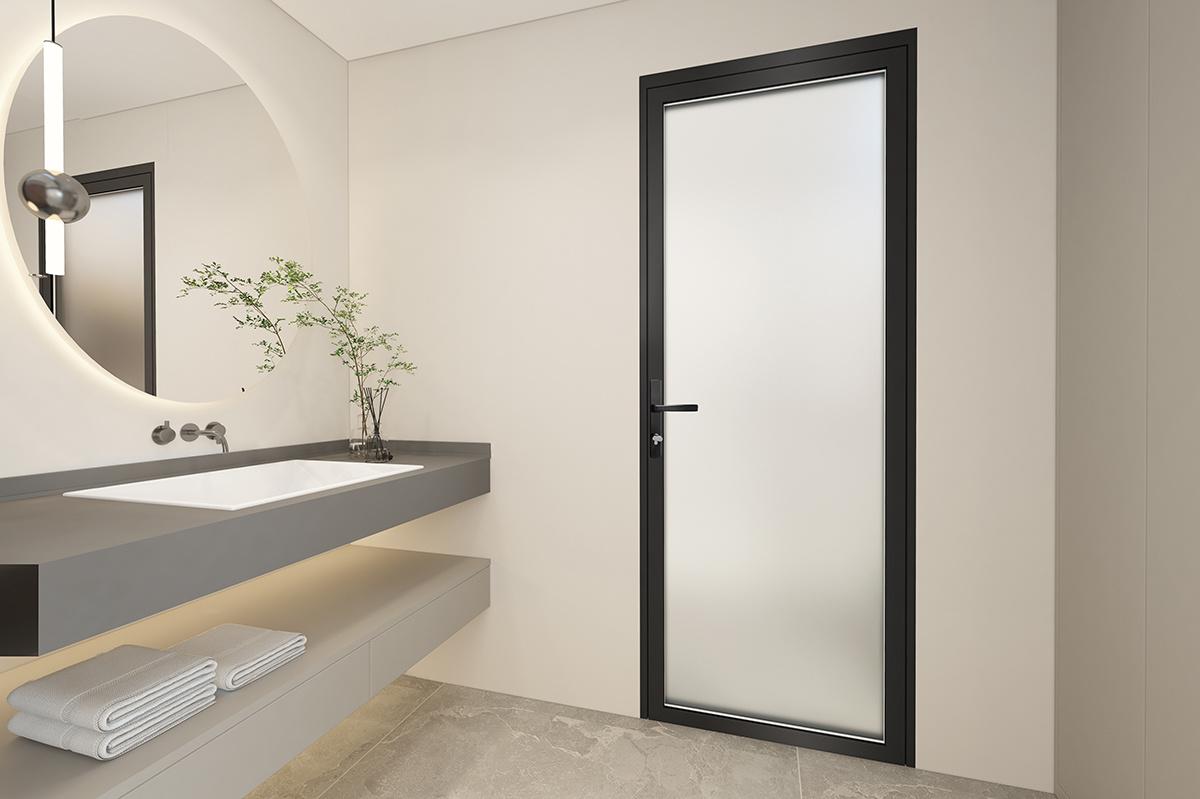

Trango 58 Series Outward Hinged Door
A slimline thermally broken aluminium hinged door with narrow 43.5 mm sightlines, maximising glass for light-filled entries and patios.
View Product

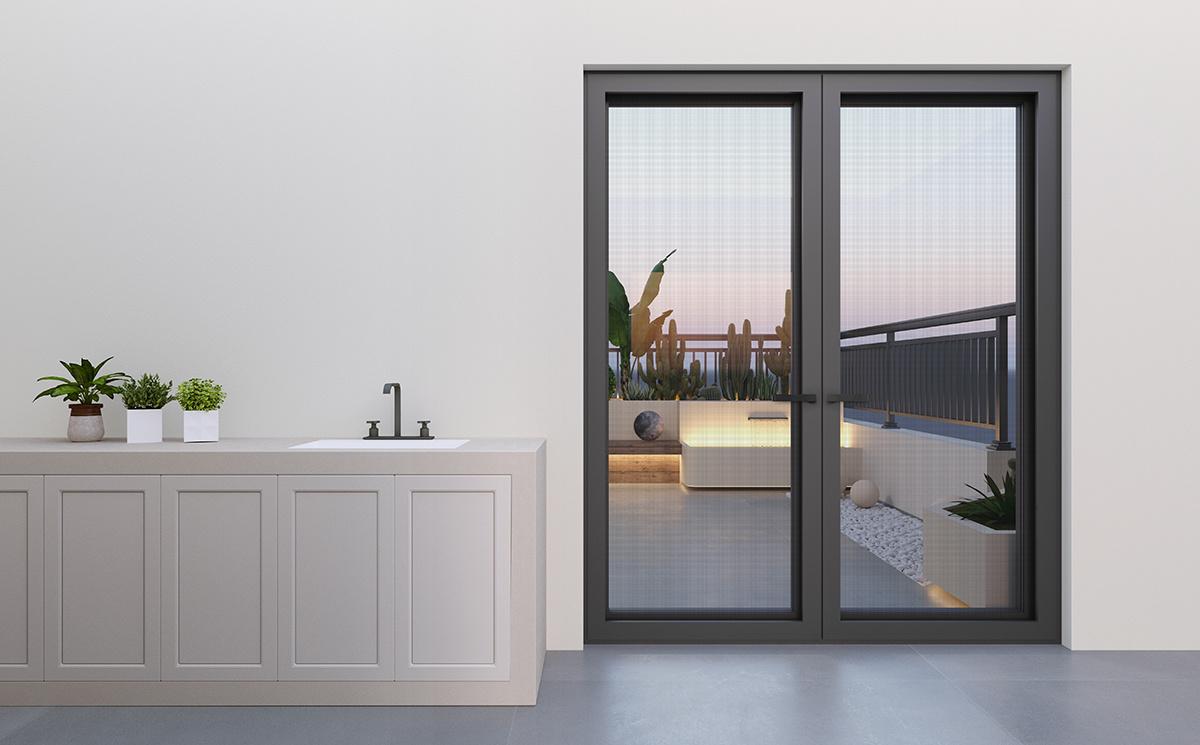

Trango 110 Series Outward Hinged Door with Integrated Screen
