Thermal performance

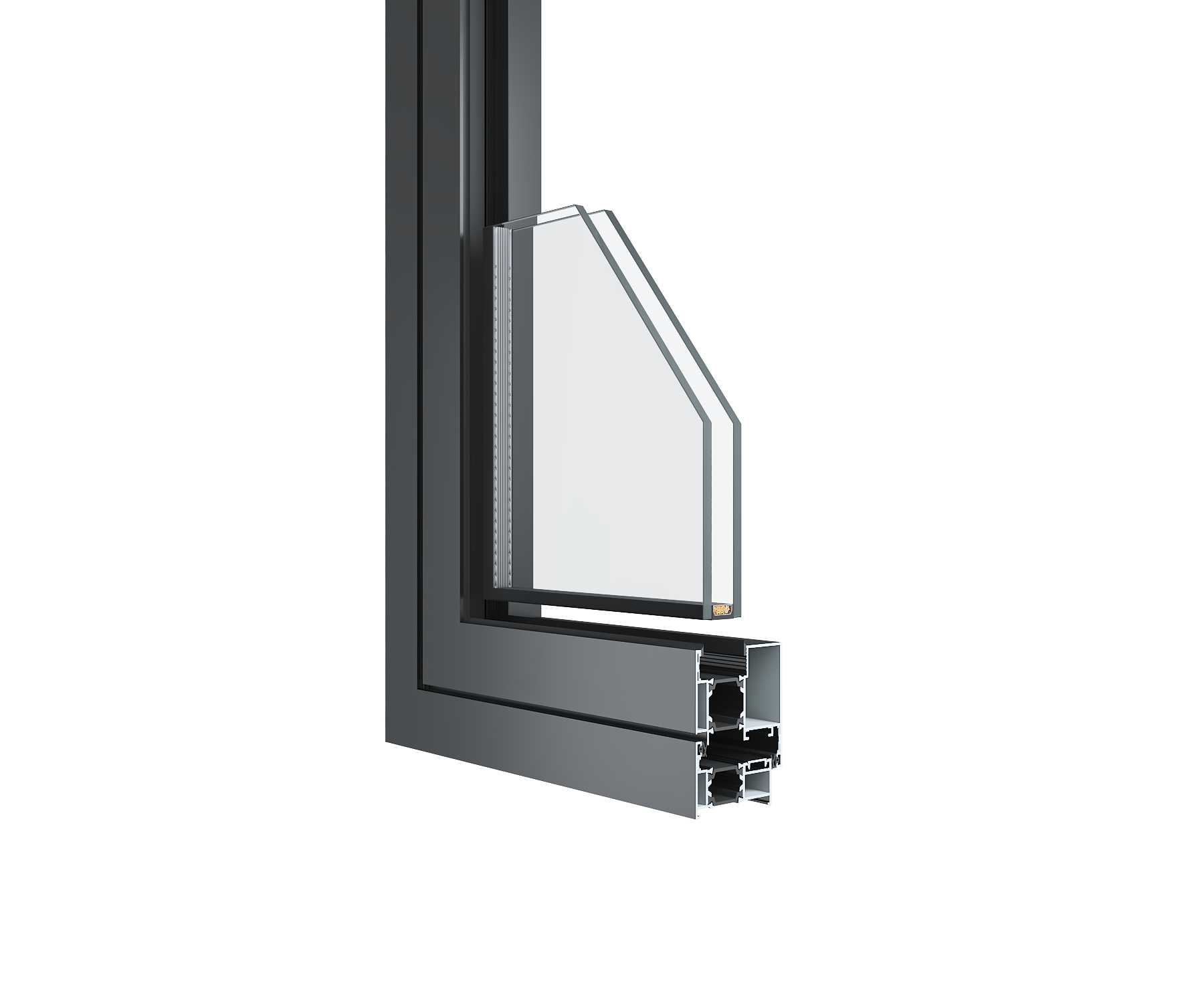

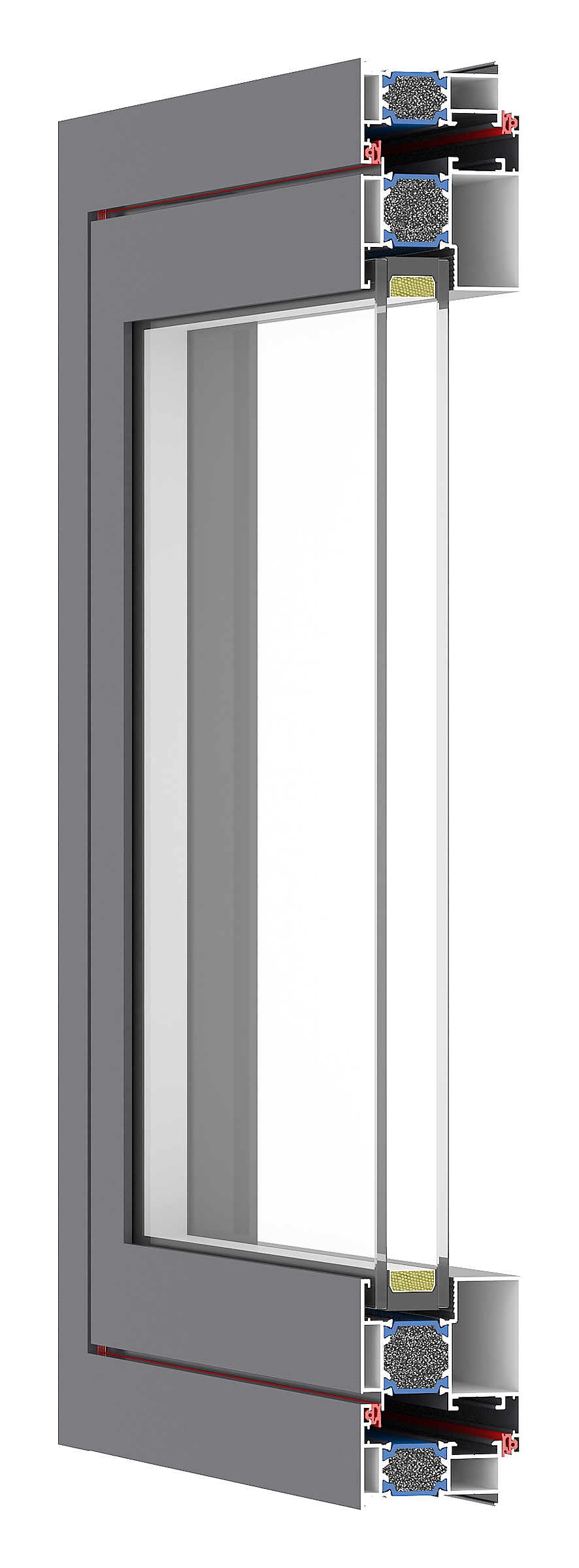

A 26 mm thermal barrier holds temperature across the frame.
Slim sightlines
glass sash 43.5 mm. More glass in the opening, less frame across the view.
Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Glazing options
Double glazed unit: 5 mm / 20 mm air / 5 mm
Specifications
- Profile wall thickness
- 1.4 mm
- Frame width
- 56.9 mm
- Sightline
- glass sash 43.5 mm
- Available opening styles
- single door, double door, unequal double door
- Opening direction
- glass sash outward
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Thermal barrier strip width
- 26 mm
- Glazing method
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken, 26 mm
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
1.99W/m²K
U-value (Uw)
Whole-of-window thermal transmittance.
700Pa
Water resistance
Tested for protection in heavy rain.
5.0kPa
Wind pressure
Serviceability under design wind load.
Rw 35
Acoustic rating
Weighted sound reduction across the system.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
