Thermal performance
A 24 mm thermal barrier holds temperature across the frame.

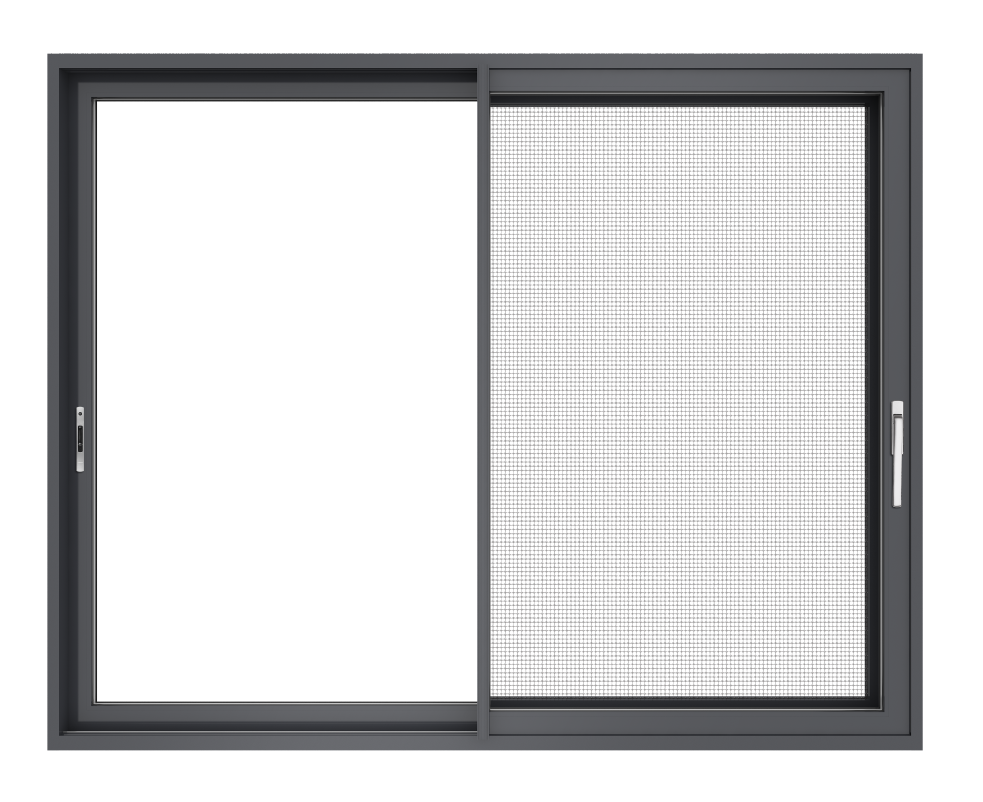

Integrated insect screen
Screening built into the frame rather than added over it.

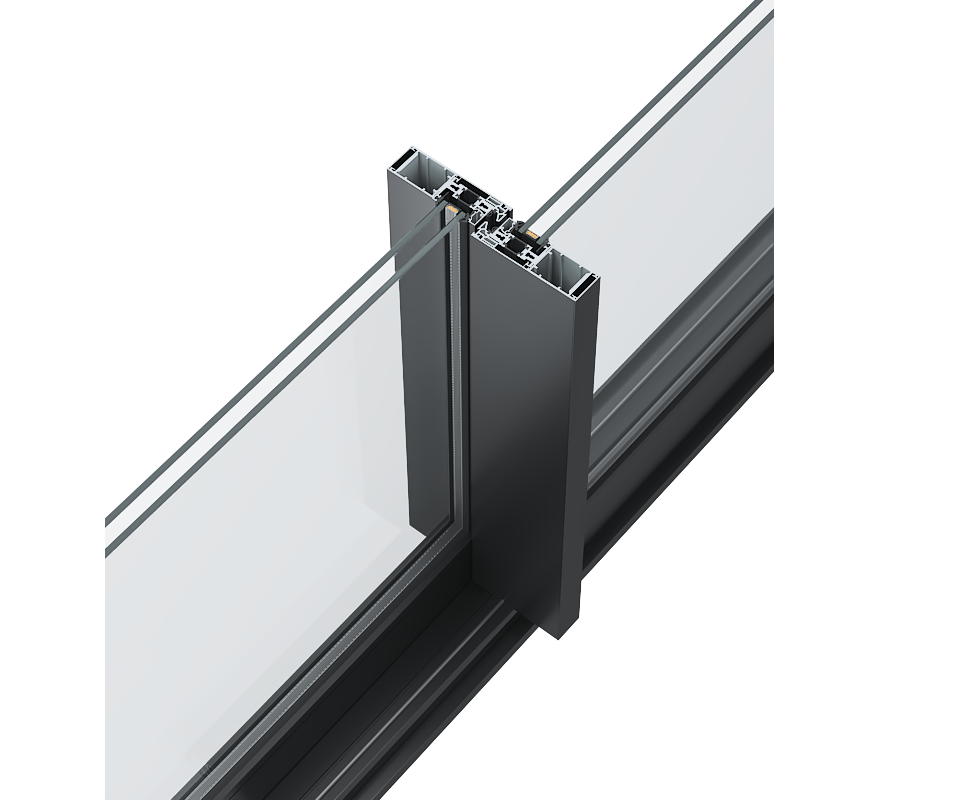

Slim sightlines
wide sash 88 mm, middle interlock 40 mm. More glass in the opening, less frame across the view.
Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Specifications
- Profile wall thickness
- 2.2 mm

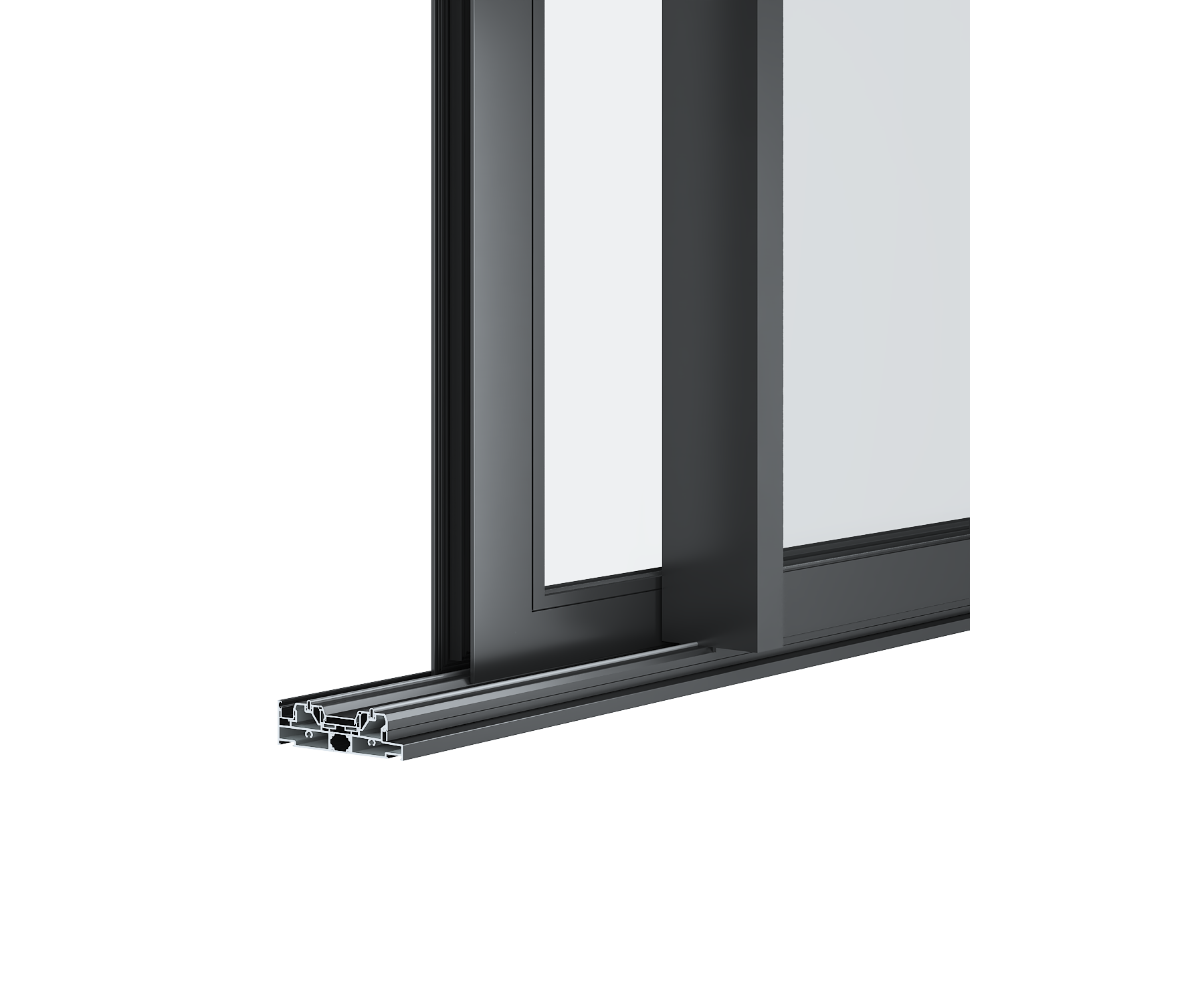

- Frame width
- two-track 150 mm, three-track 225 mm
- Sightline
- wide sash 88 mm, middle interlock 40 mm
- Standard glass
- 5+20A+5 (fluorocarbon-coated aluminium spacer)
- Thermal barrier strip width
- 24 mm
- Standard screen mesh
- 0.7 mm wire, 11 mesh, 304 stainless steel black diamond
- Hardware colour
- silver

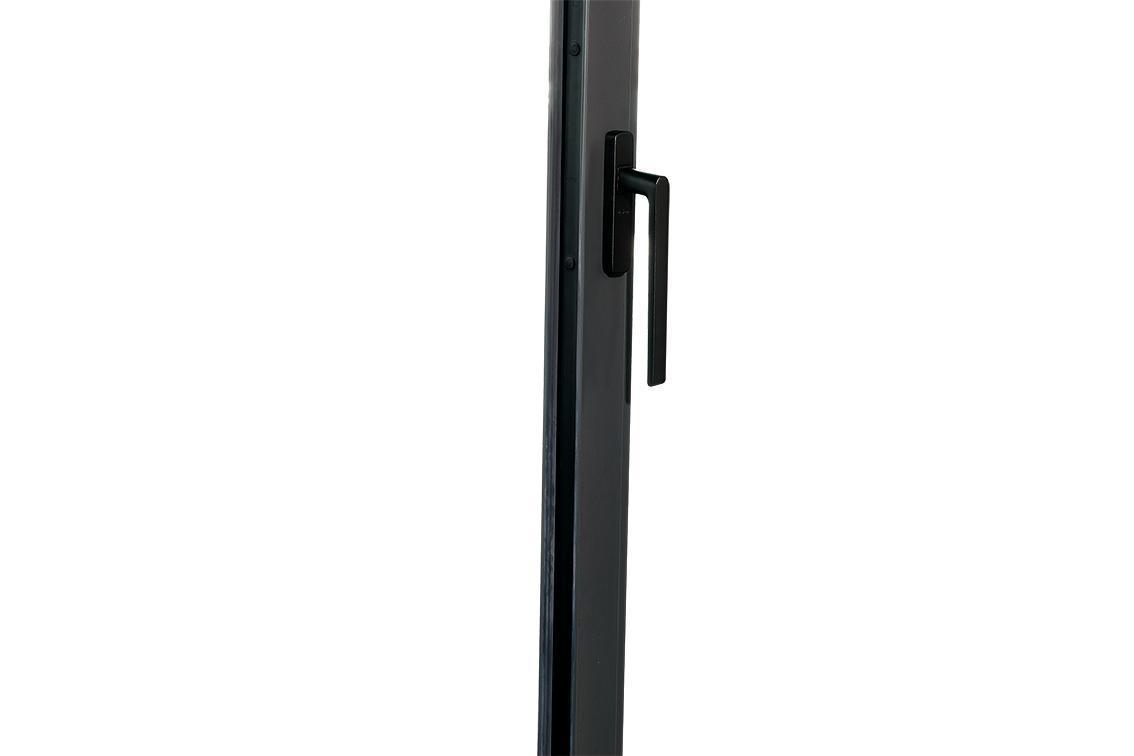

- Standard handle
- aluminium alloy large handle with mortise lock
- Note
- single glass panels 6 m² or larger require full perimeter sealant after installation

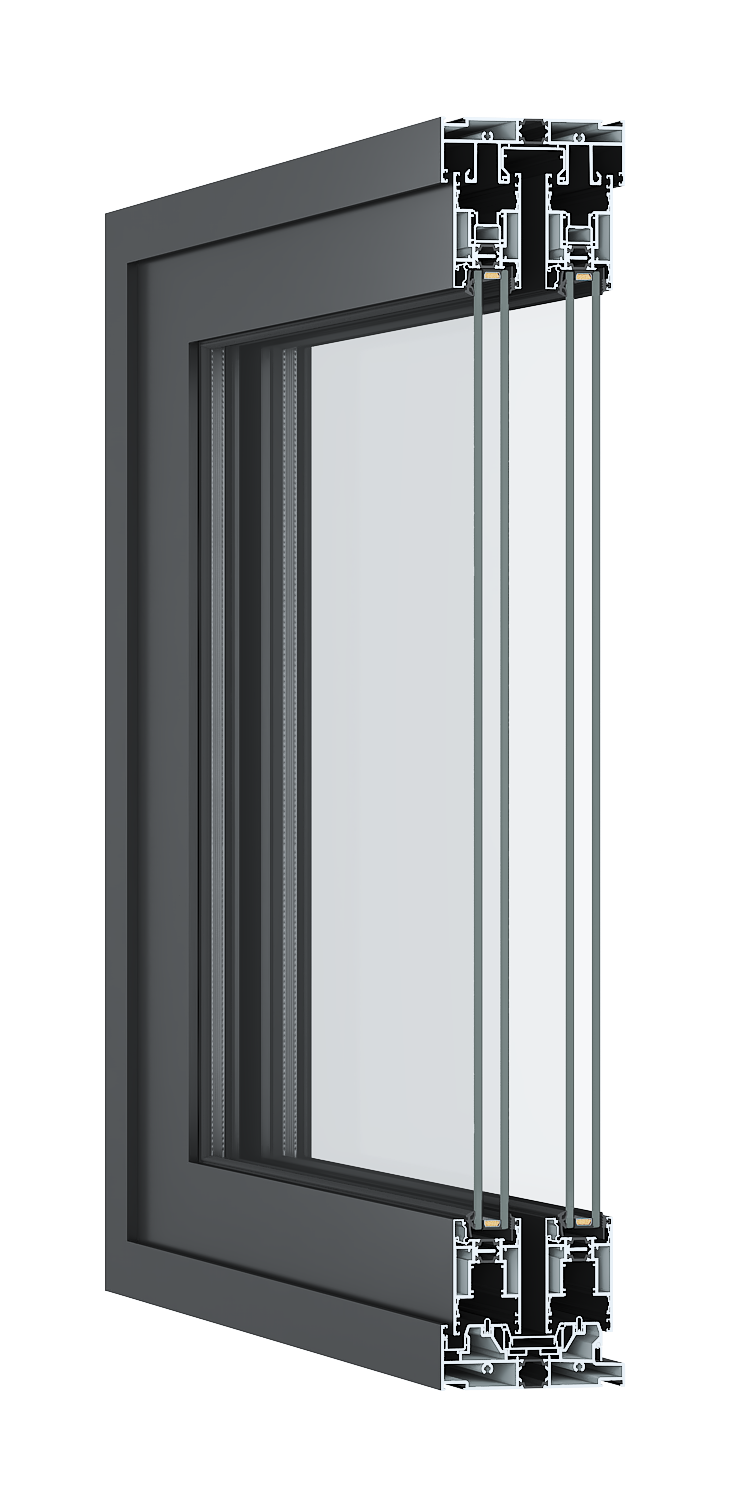

- Glazing method
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken, 24 mm
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
This system has been tested and we hold the report. The figures are not transcribed onto this page, so rather than publish a number we cannot show the working for, ask us and we will send you the report itself.
Request the test reportTechnical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Sliding Doors

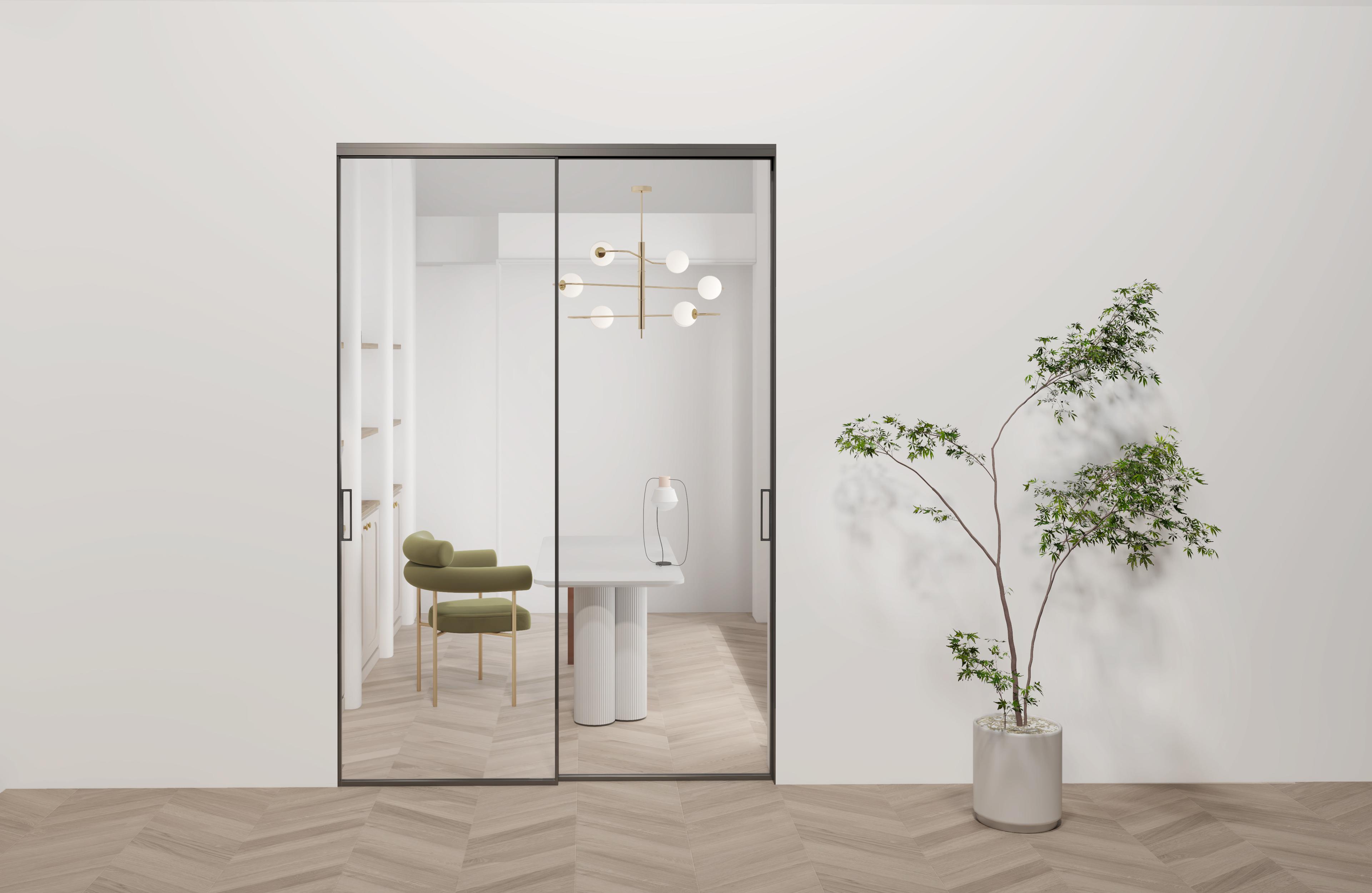

Trango 4012T Series Ultra-Narrow Sliding Door
An ultra-narrow multi-track aluminium sliding door (2-5 tracks) that stacks away for expansive, minimalist openings.
View Product
Trango L6 Series Heavy-Duty Sliding Door
A heavy-duty aluminium sliding door (non-thermally-broken) engineered for very large, weighty glass panels with anti-swing pulleys.
View Product

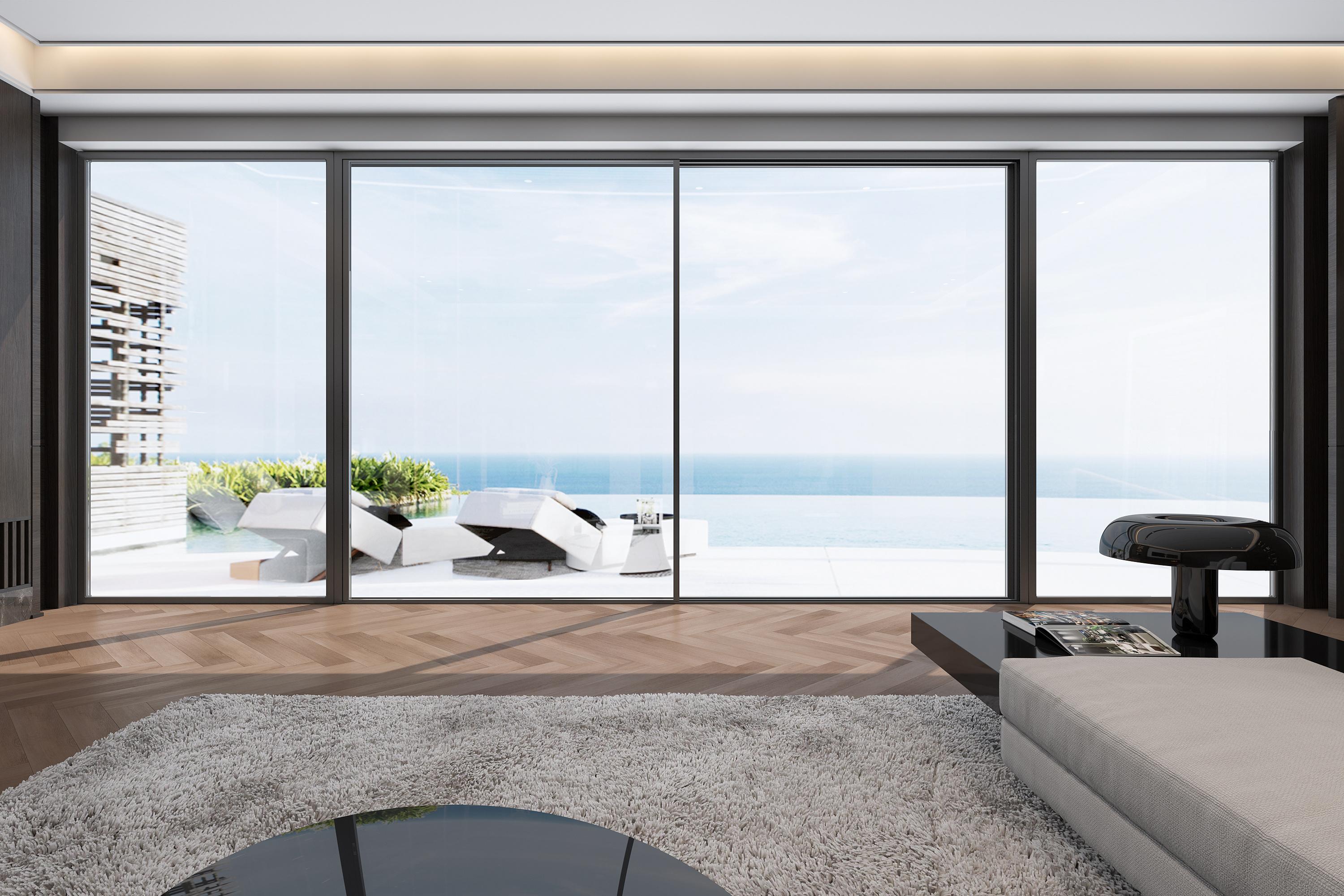

Trango 138 Series Panoramic Sliding Door
