Hinged Doors (Outward Opening)

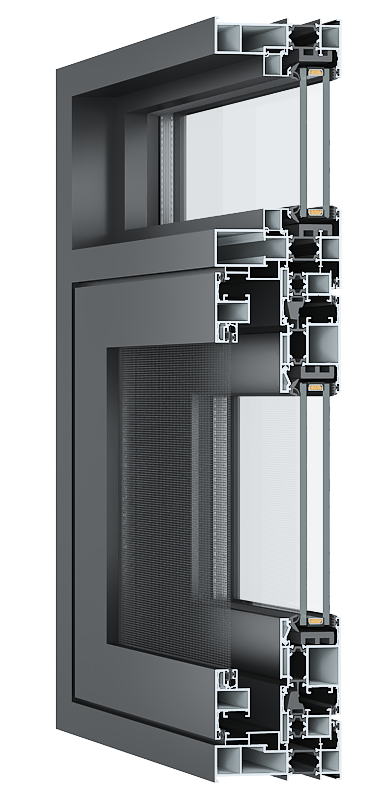

Trango 109 Series Hinged Door (Outward)
A thermally broken aluminium hinged door with integrated flyscreen and multiple opening modes, balancing ventilation, insulation and insect protection.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 109 mm
- Available opening modes
- outward casement, top-hung, outward opening top-hung
- Opening direction
- glass sash opens outward, flyscreen sash opens inward
- Standard glass
- 5+20A+5 (fluorocarbon insulated aluminium spacer)
- Maximum fixed glass rebate size
- 47 mm
- Glazing
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken
