Hinged Doors (Outward Opening)

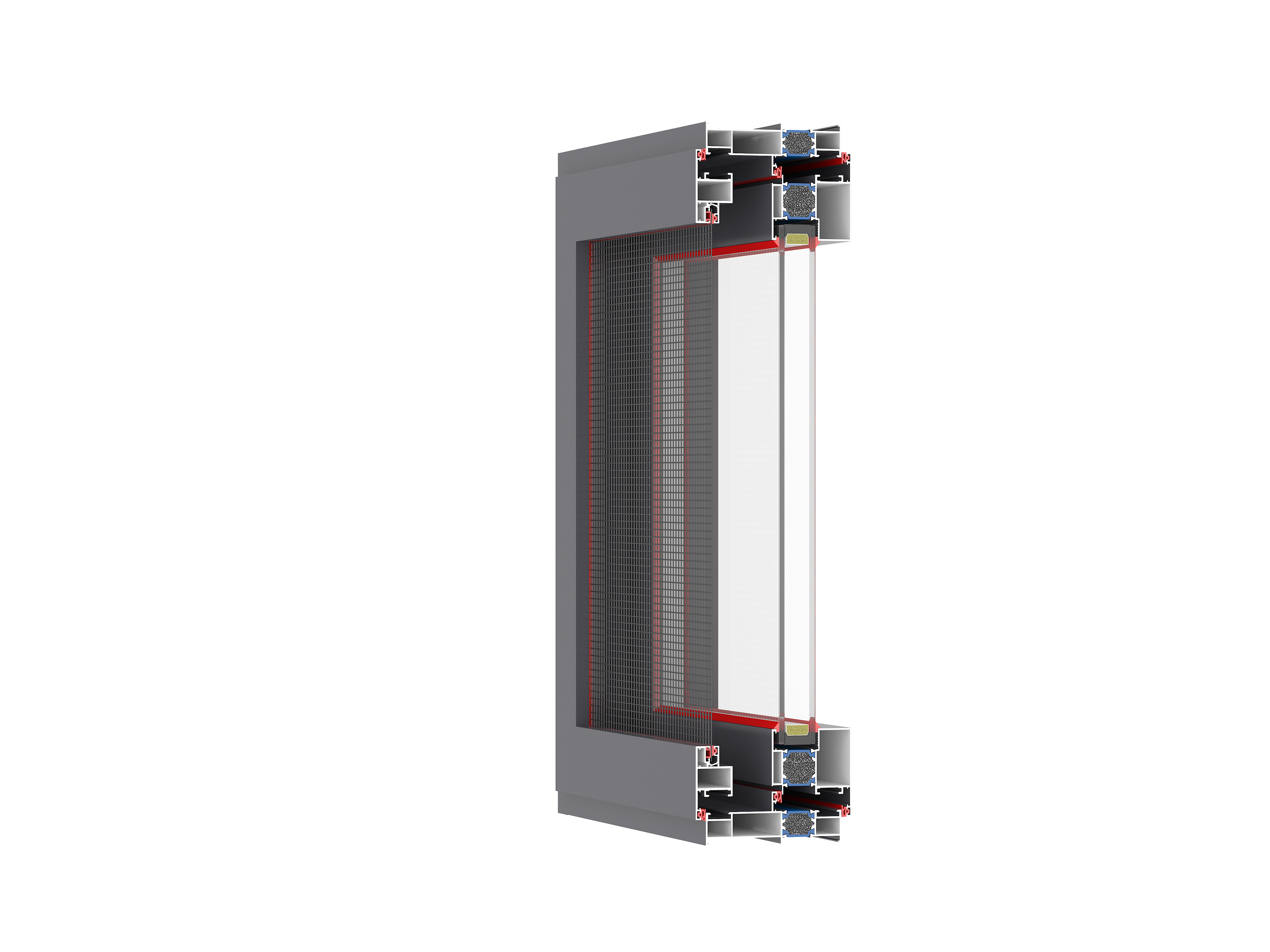

Trango 110 Series Hinged Door (Outward)
A thermally broken aluminium hinged door with an integrated inward-opening flyscreen, combining outward-opening operation with year-round insect protection.
Specifications
- Profile wall thickness
- 1.4 mm
- Frame width
- 110 mm
- Visible sash dimension
- glass sash 43.5 mm
- Available opening modes
- outward opening door, double door, unequal double door
- Opening direction
- flyscreen sash opens inward, glass sash opens outward
- Standard glass
- 5+20A+5 (fluorocarbon insulated aluminium spacer)
- Maximum fixed glass rebate size
- 43.5 mm
- Thermal barrier strip width
- 26 mm
- Standard flyscreen mesh
- 0.45 mm, 15-mesh stainless steel mesh
- Hardware colours
- black, silver
- Glazing
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken
