Hinged Doors (Outward Opening)

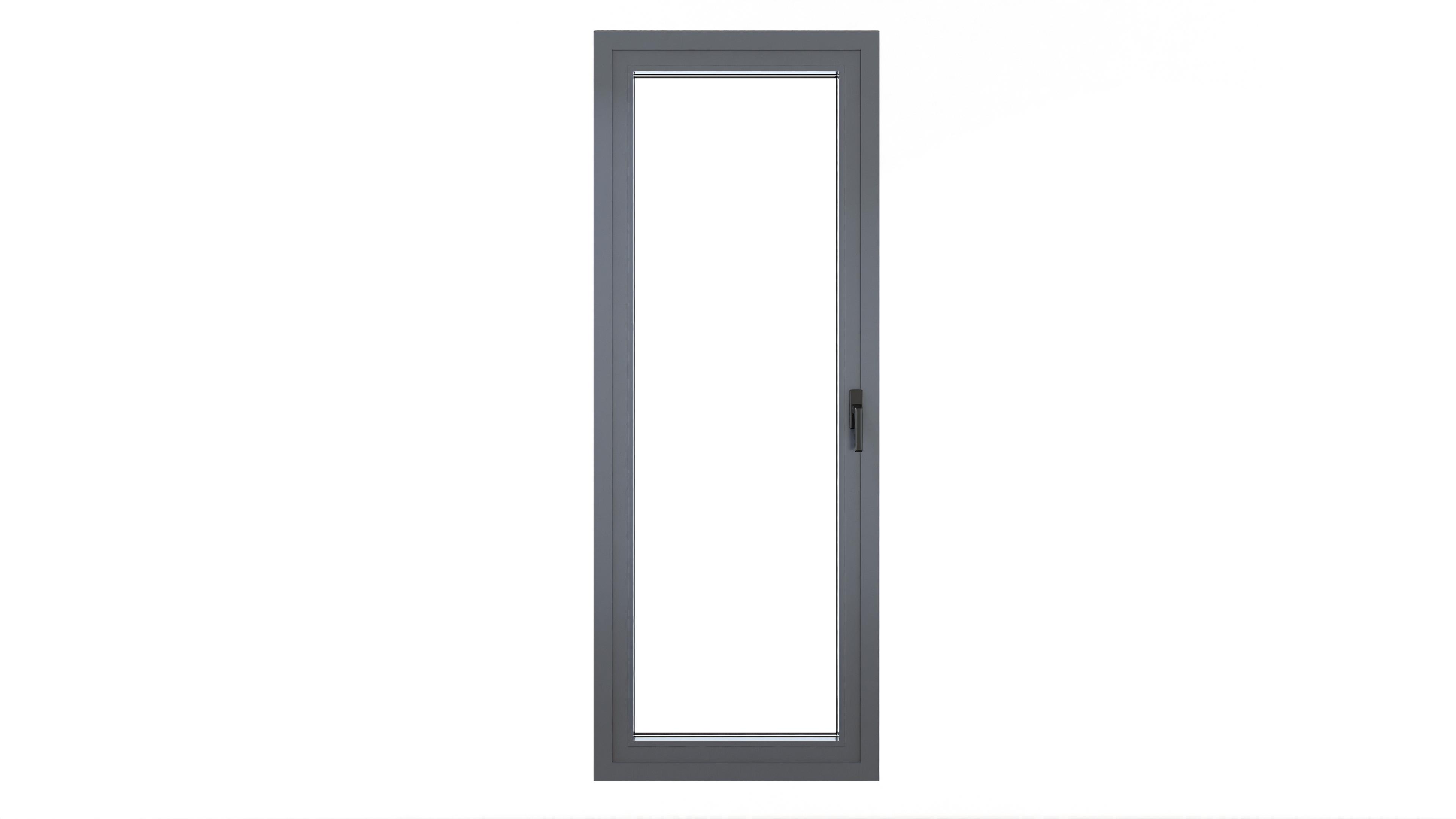

Trango 88 Series Hinged Door (Outward)

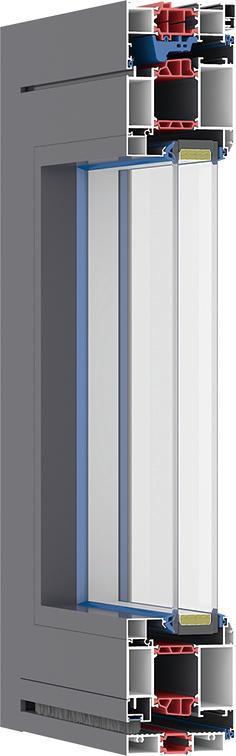

A thermally broken aluminium hinged door with a robust 88 mm frame and 2.2 mm sash walls, available as single, double or unequal-double - a solid entry or patio door for the Australian climate.
Specifications
- Profile wall thickness
- frame 1.8 mm, sash 2.2 mm
- Frame width
- 88 mm
- Visible sash width
- glass sash 93 mm
- Available opening styles
- single door, double door, unequal double door
- Opening direction
- glass sash opens outward
- Standard glass
- 5+27A+5 (fluorocarbon insulated aluminium spacer)
- Maximum fixed glass rebate size
- 58 mm
- Glazing
- Double glazed unit: 5 mm / 27 mm air / 5 mm
- Thermal barrier
- Thermally broken
