Hinged Doors (Outward Opening)

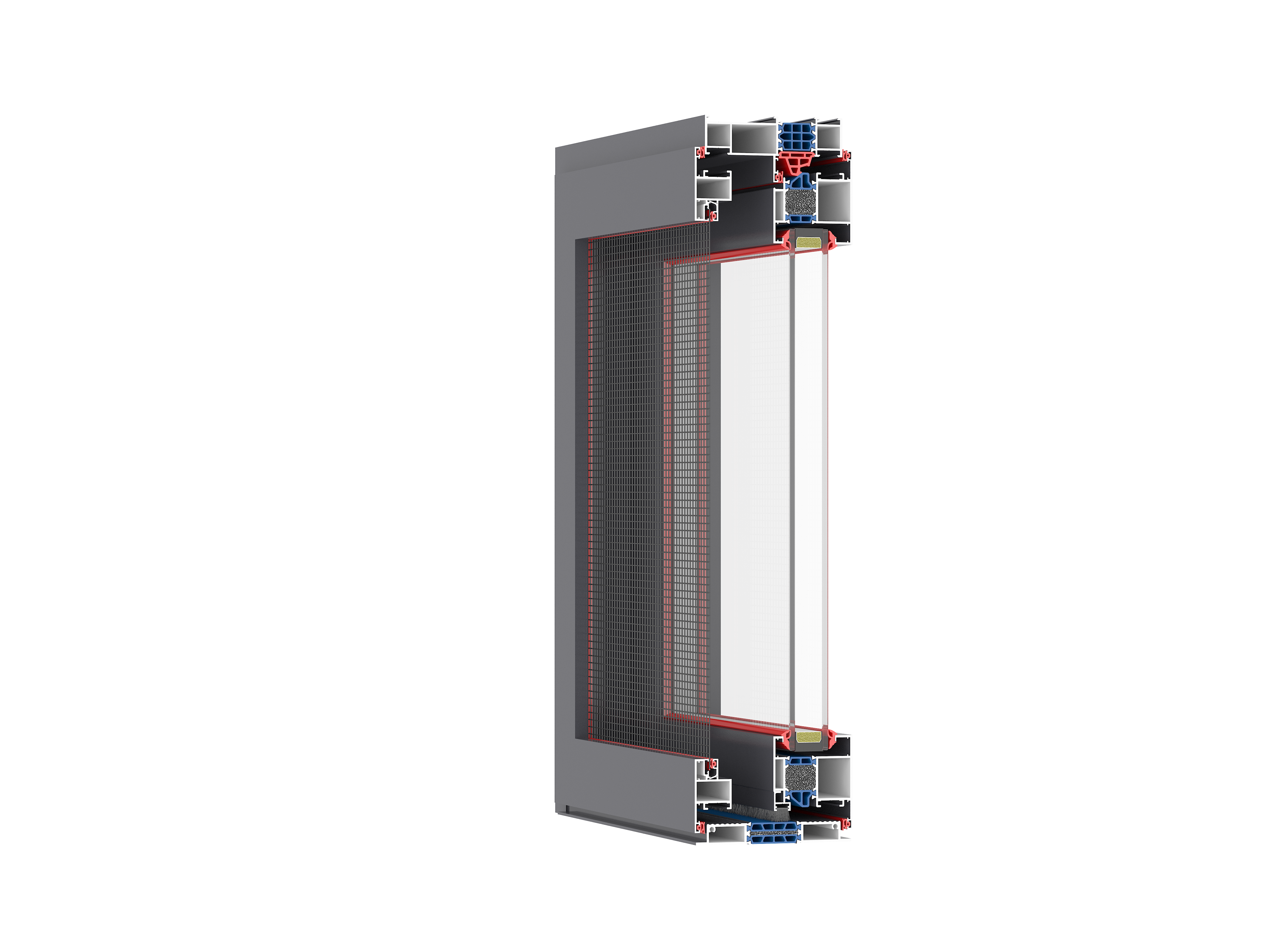

Trango 113 Series Hinged Door (Outward)
A premium thermally broken aluminium hinged door with integrated flyscreen and double glazing, built for high-traffic patio and entry openings.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 111.5 mm
- Visible sash dimensions
- flyscreen sash 56 mm, glass sash 72 mm
- Available opening styles
- single door, double door, unequal double door
- Opening direction
- flyscreen sash opens inward, glass sash opens outward
- Standard glass
- 5+27A+5 (fluorocarbon insulated aluminium spacer)
- Maximum fixed glass rebate size
- 51 mm
- Thermal barrier strip width
- outer frame 30 mm, sash 25 mm
- Standard flyscreen mesh
- 0.45 mm, 15-mesh stainless steel mesh
- Glazing
- Double glazed unit: 5 mm / 27 mm air / 5 mm
- Thermal barrier
- Thermally broken
