Sliding Doors

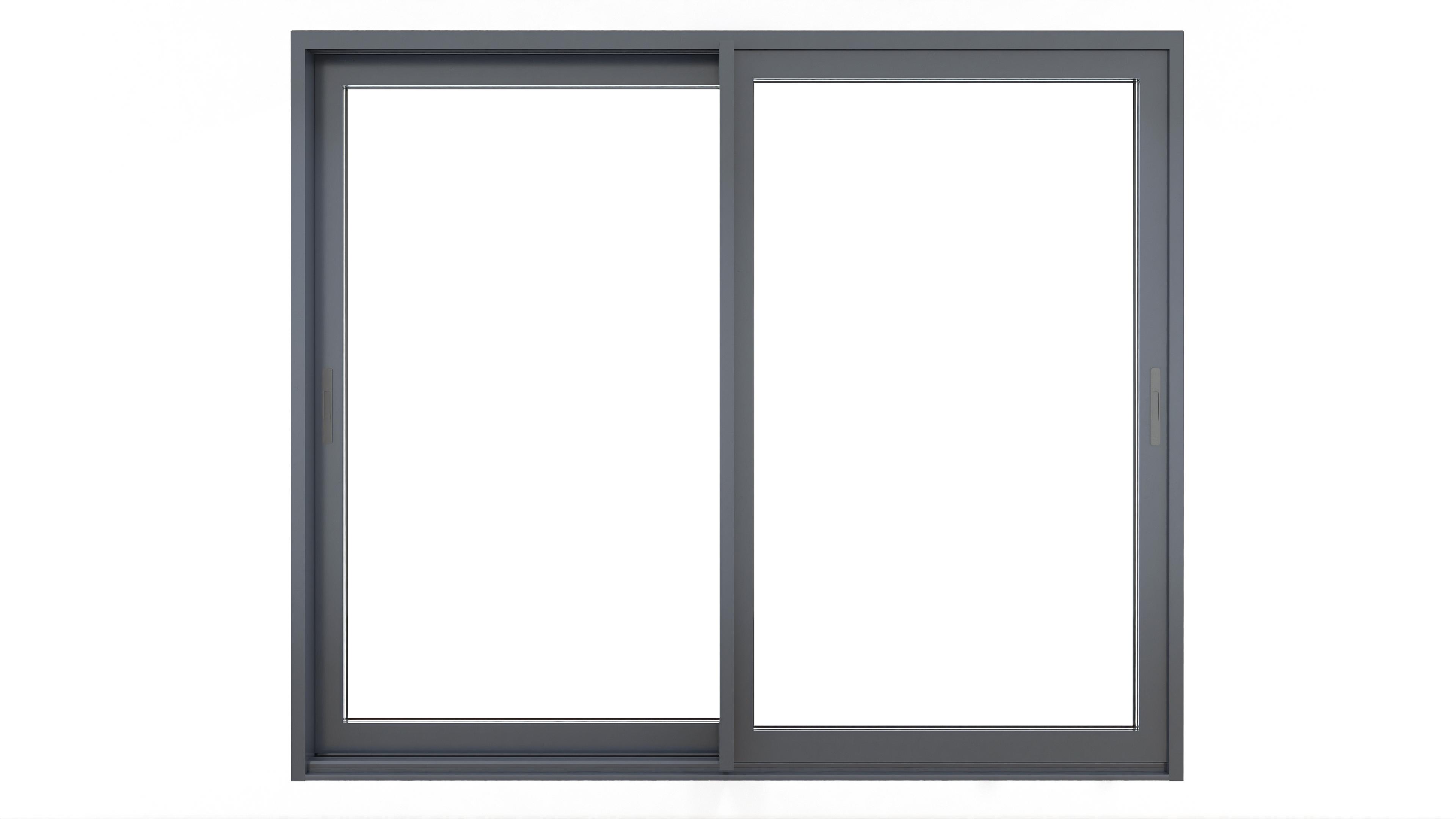

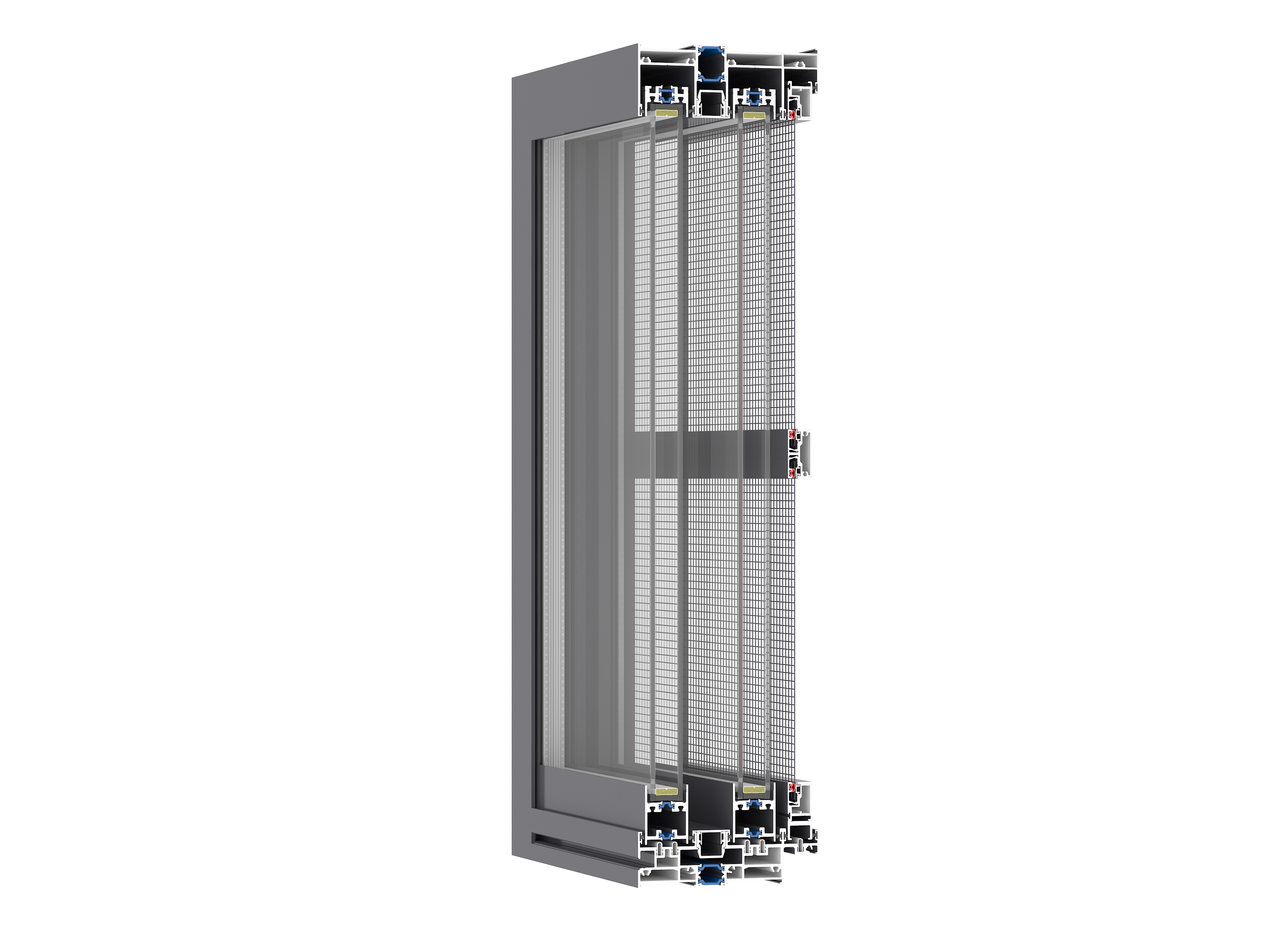

Trango 138 Series Sliding Door
A thermally broken panoramic sliding door with ultra-slim 22 mm interlocks and an optional roller flyscreen for uninterrupted views.
Specifications
- Profile wall thickness
- 2.2-3.0 mm
- Frame width
- two-track 138 mm; two-track with roller flyscreen 164 mm; three-track (three sashes) 221 mm; three-track (three sashes) with roller flyscreen 247 mm; three-track (two sashes) with sliding flyscreen 172 mm
- Visible sash width
- middle stile 22 mm
- Standard glass
- 5+20A+5 (fluorocarbon-coated insulating aluminium spacer)
- Thermal barrier width
- outer frame 25 mm, sash 14.8 mm
- Standard flyscreen mesh
- 0.7 mm wire diameter, 11 mesh, 304 stainless steel black diamond mesh (grey optional)
- Glazing
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken
