Sliding Doors

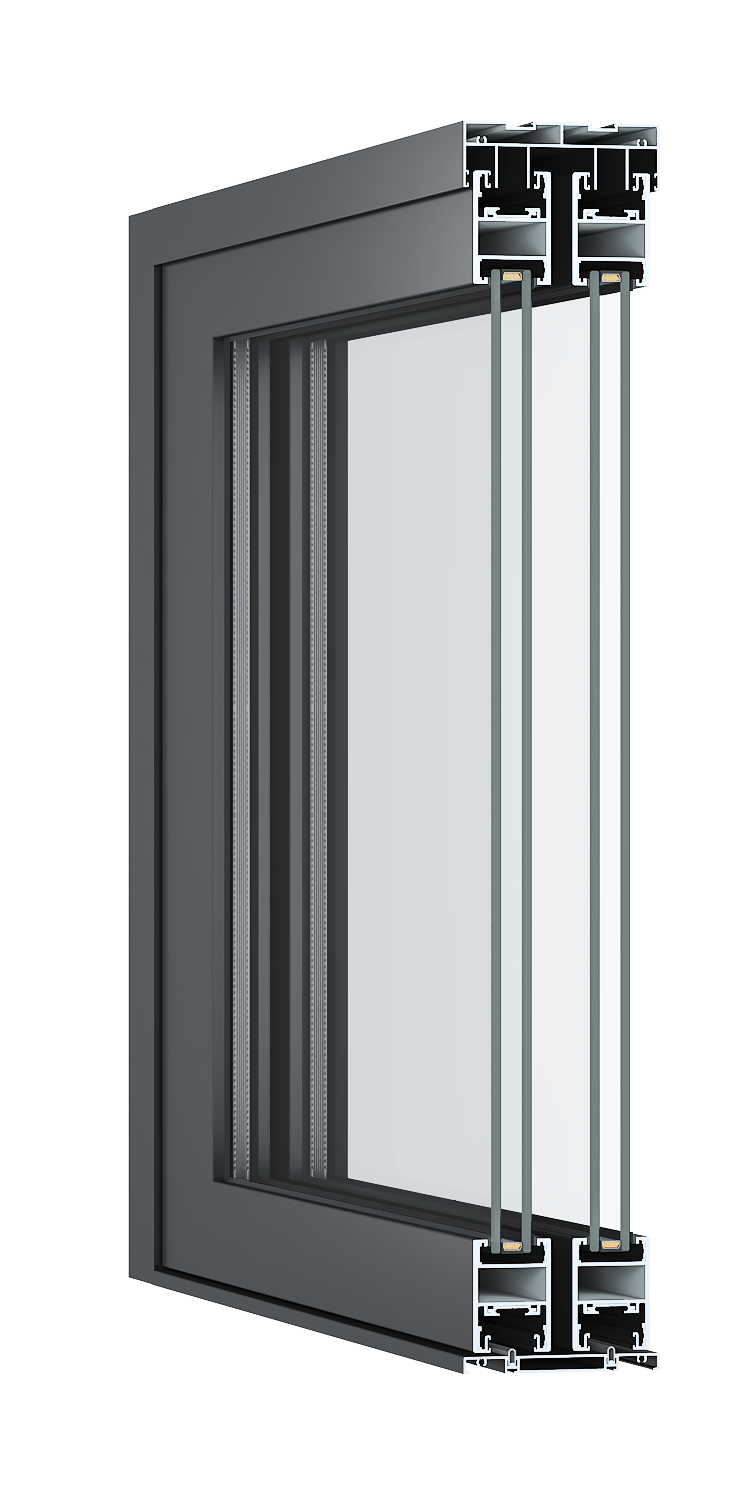

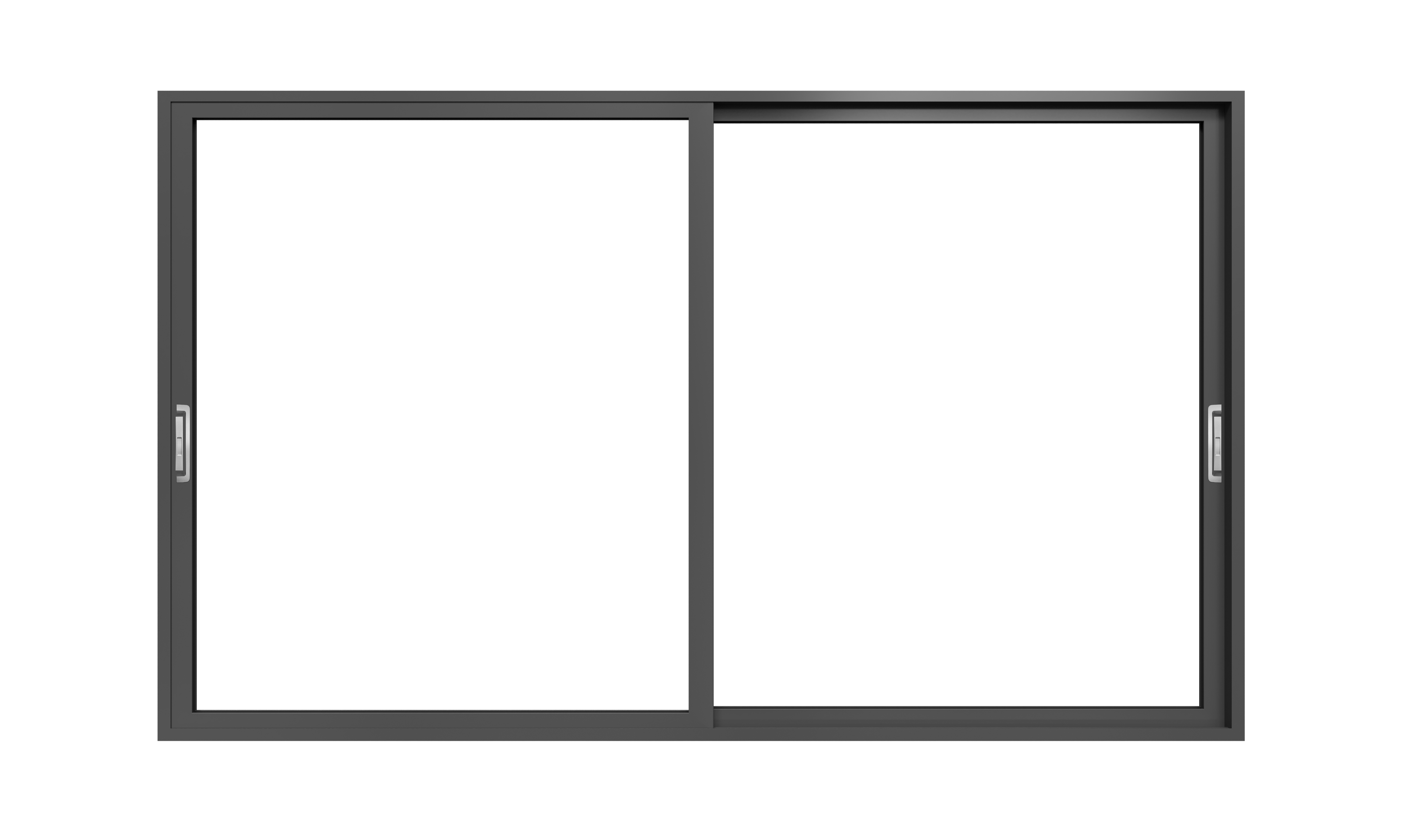

Trango L6 Series Sliding Door
A heavy-duty aluminium sliding door (non-thermally-broken) engineered for very large, weighty glass panels with anti-swing pulleys.
Specifications

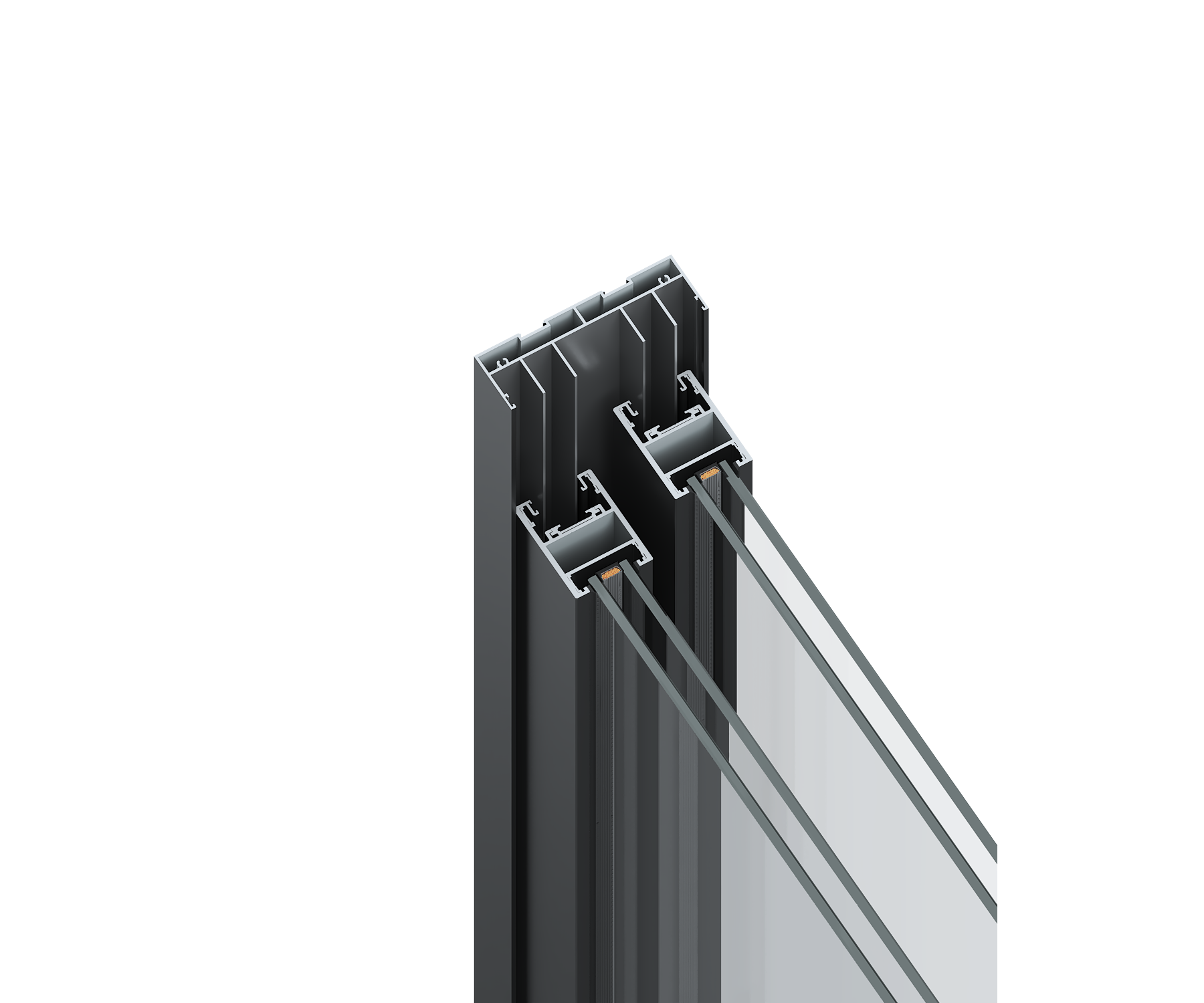

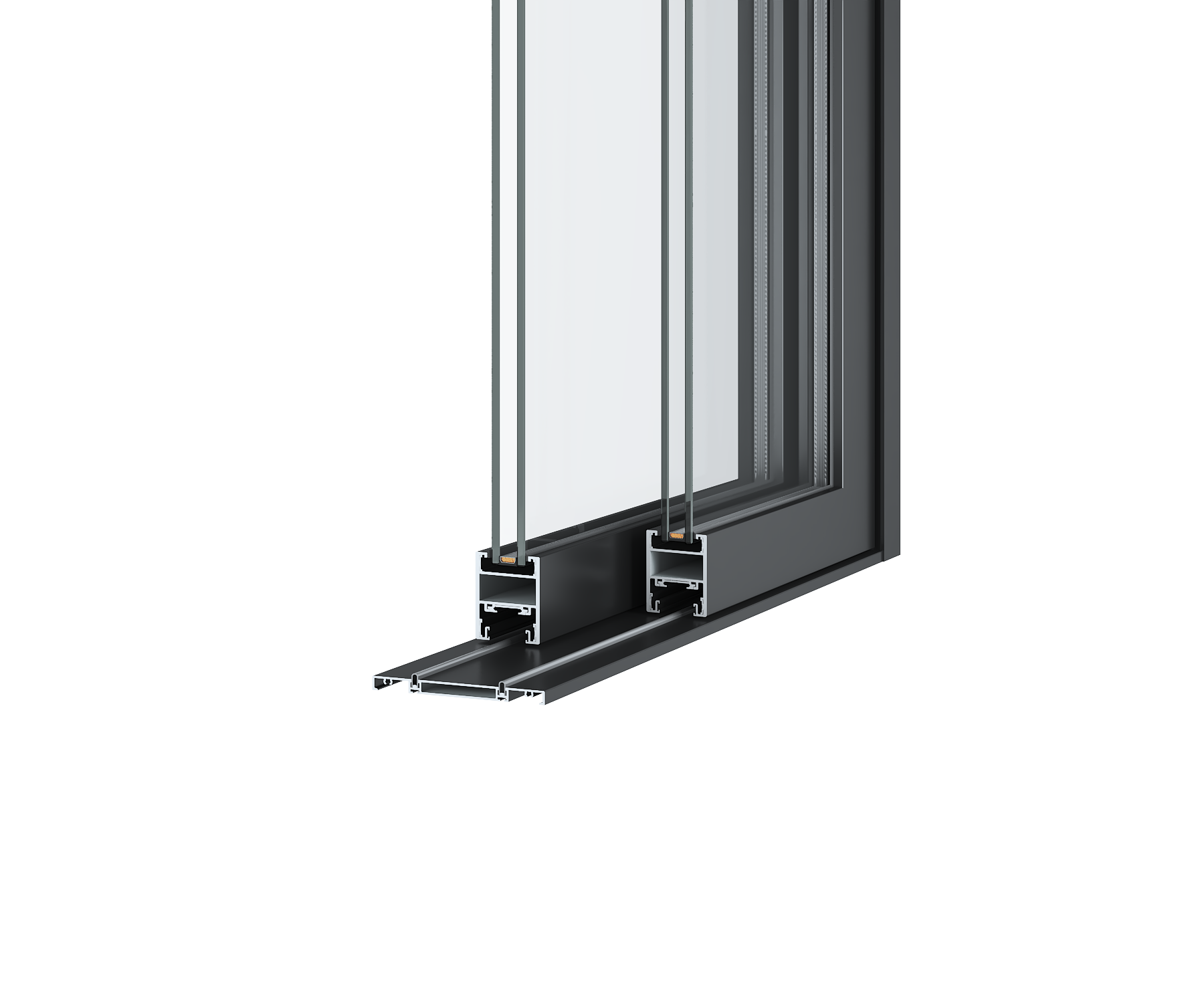

- Profile wall thickness
- outer frame 1.6 mm, 68 sash profile 3.0 mm, 100 sash profile 2.0 mm
- Frame width
- two-track 126.5 mm, three-track 190.5 mm
- Visible sash width
- 68 sash profile 68 mm, 100 sash profile 100 mm
- Standard glass
- 5+18A+5 (fluorocarbon-coated insulating aluminium spacer)
- Maximum opening sash notch size
- 40 mm
- Thermal barrier width
- none
- Standard flyscreen mesh
- 0.7 mm, 11-mesh stainless steel flyscreen
- Standard pulley
- customised recessed amber pulley / customised POK steel-clad anti-swing pulley
- Glazing
- Double glazed unit: 5 mm / 18 mm air / 5 mm
- Thermal barrier
- Thermally broken
