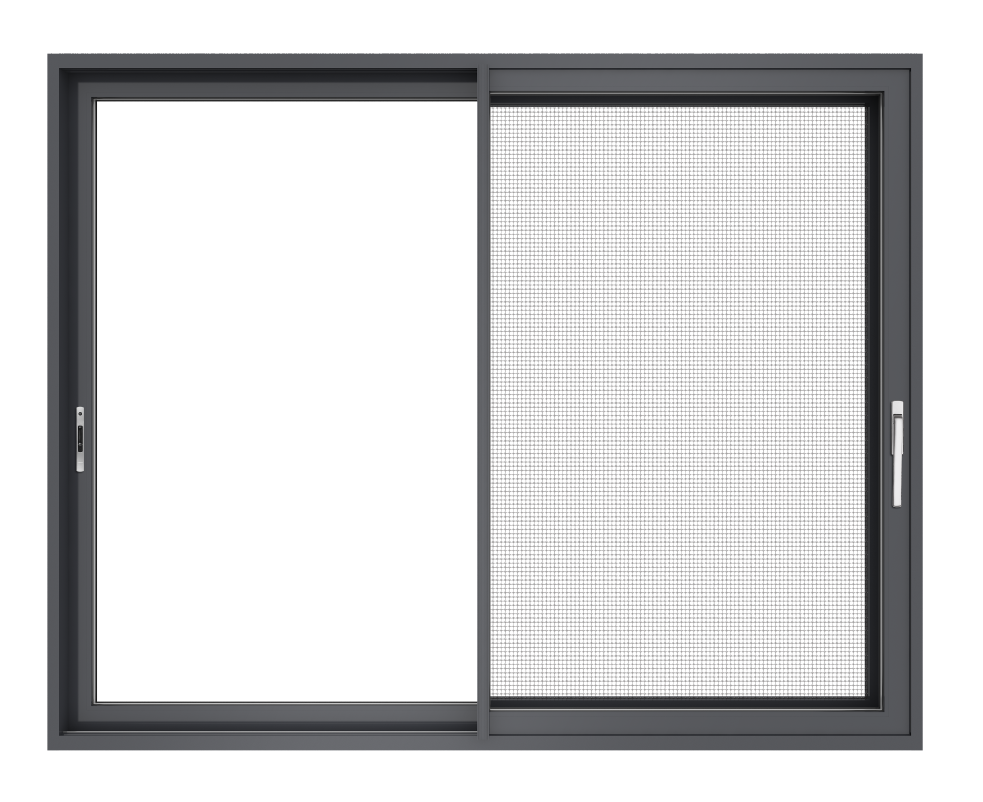

Trango 150 Series Sliding Door
A heavy-duty thermally broken aluminium sliding door for large openings, with large-handle mortise locking and big glass panels for indoor-outdoor living.
Specifications
- Profile wall thickness
- 2.2 mm

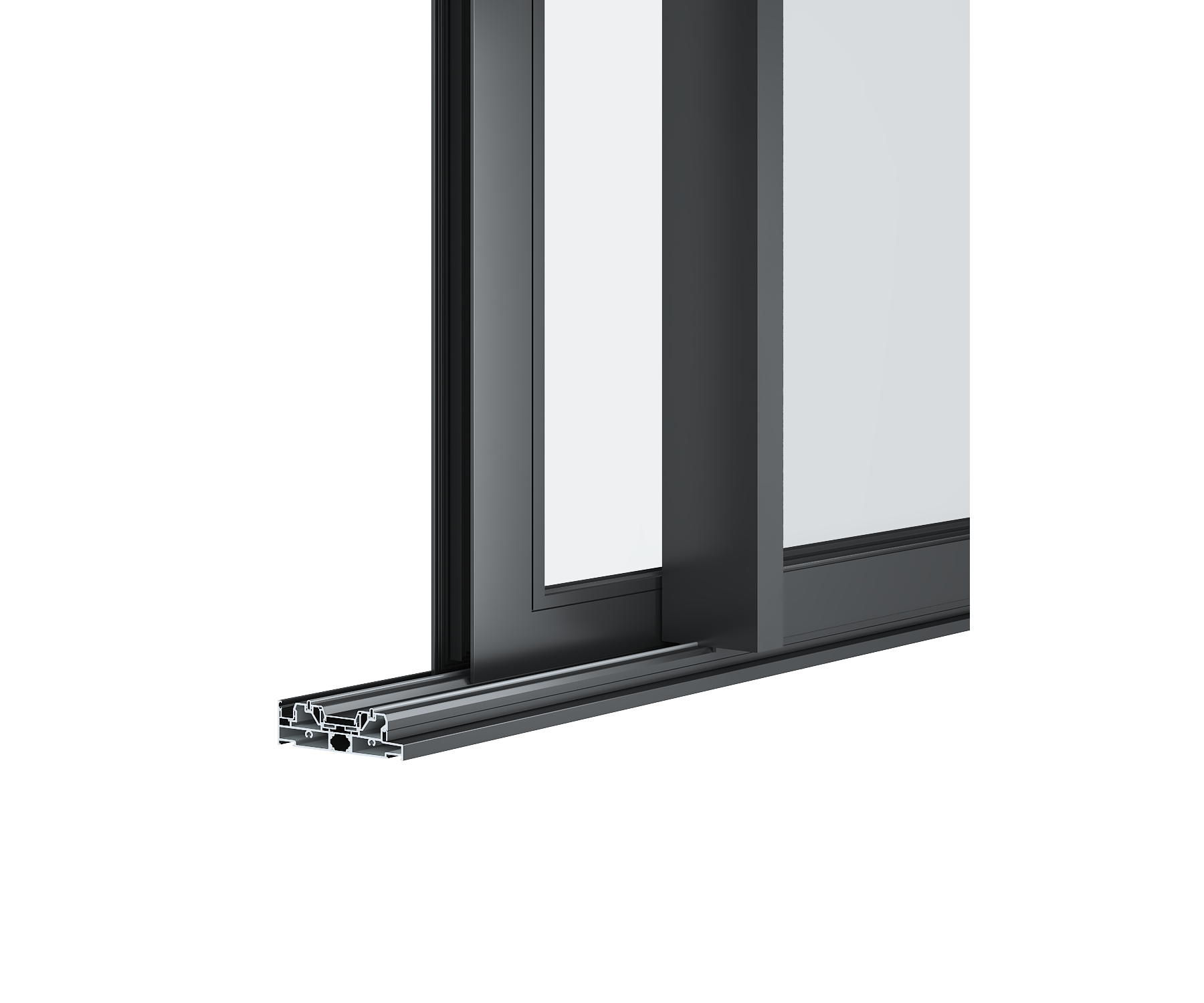

- Frame width
- 150 mm for 2-track, 225 mm for 3-track

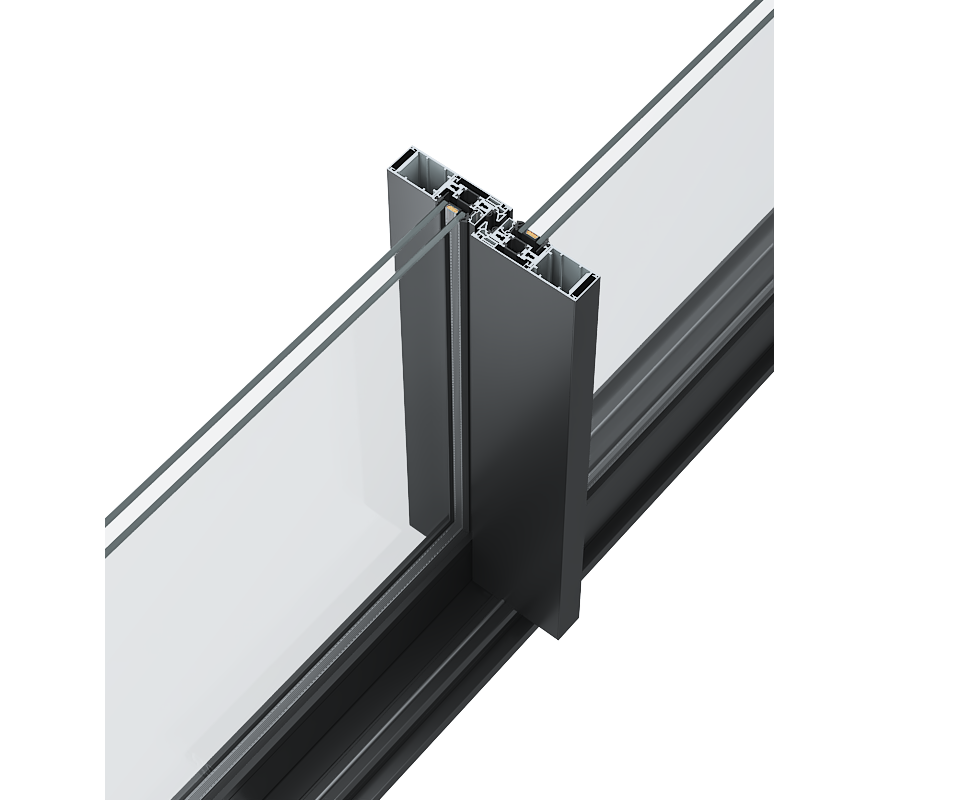

- Visible sash dimension
- wide sash 88 mm, middle interlock 40 mm
- Standard glass
- 5+20A+5 (fluorocarbon insulated aluminium spacer)
- Thermal barrier strip width
- 24 mm
- Standard flyscreen mesh
- 0.7 mm wire diameter, 11 mesh, 304 stainless steel black diamond mesh
- Hardware colour
- silver

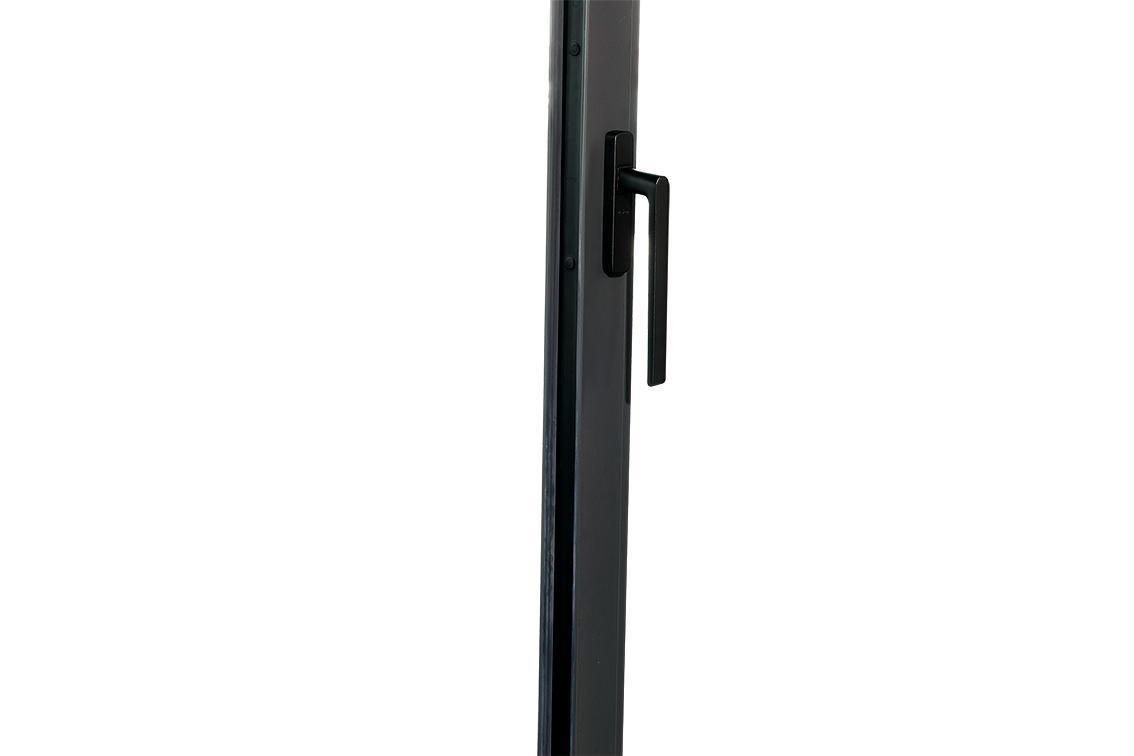

- Standard sliding handle
- aluminium alloy large handle + mortise lock

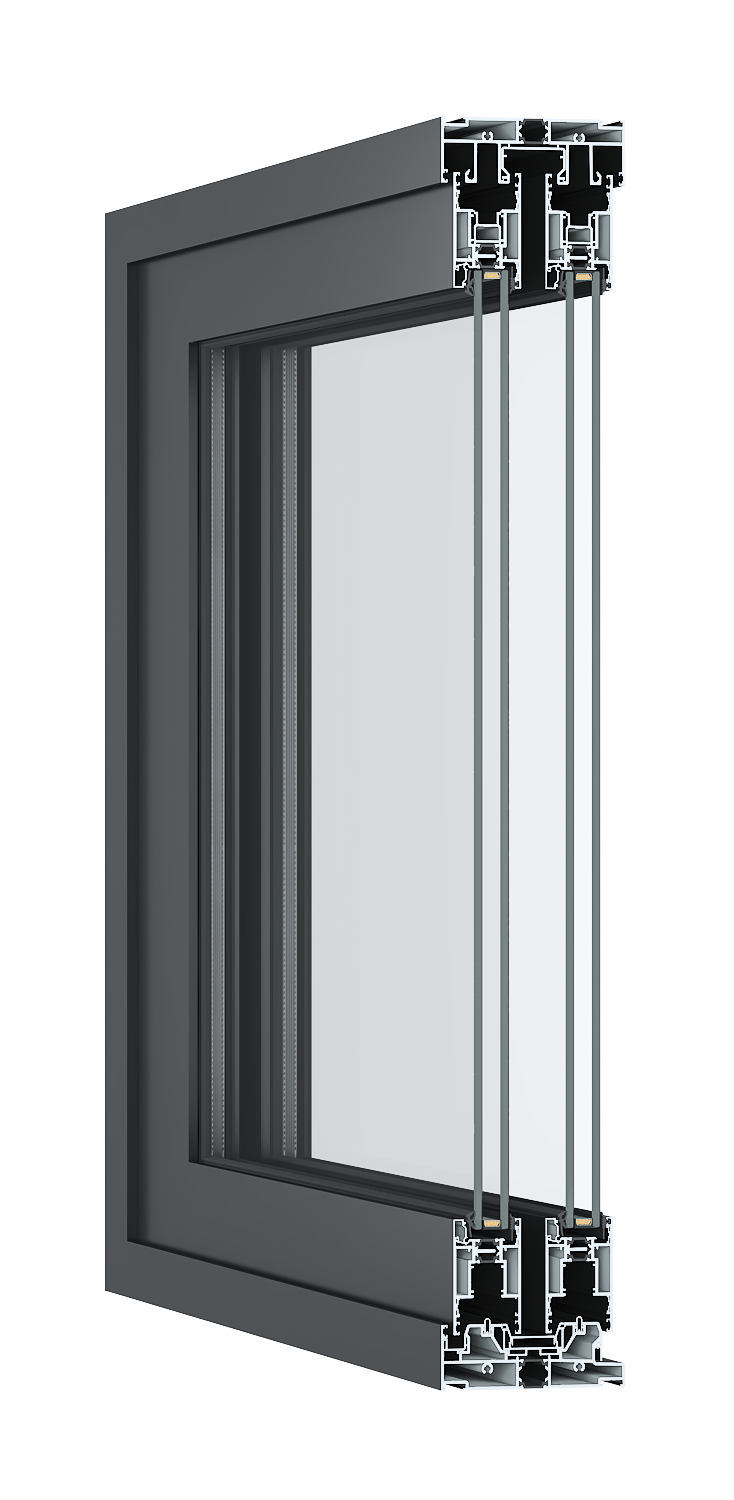

- Glazing
- Double glazed unit: 5 mm / 20 mm air / 5 mm
- Thermal barrier
- Thermally broken
