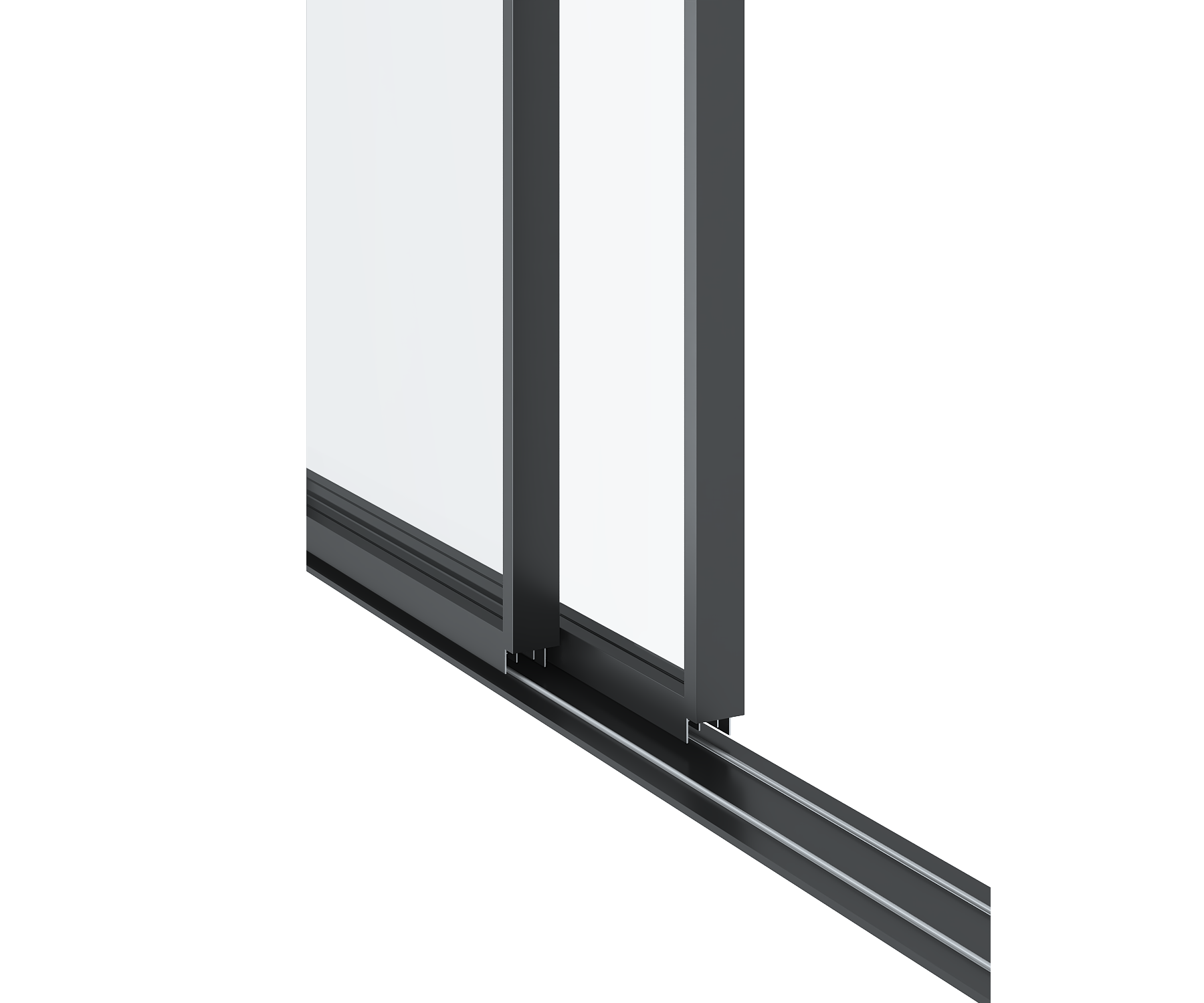

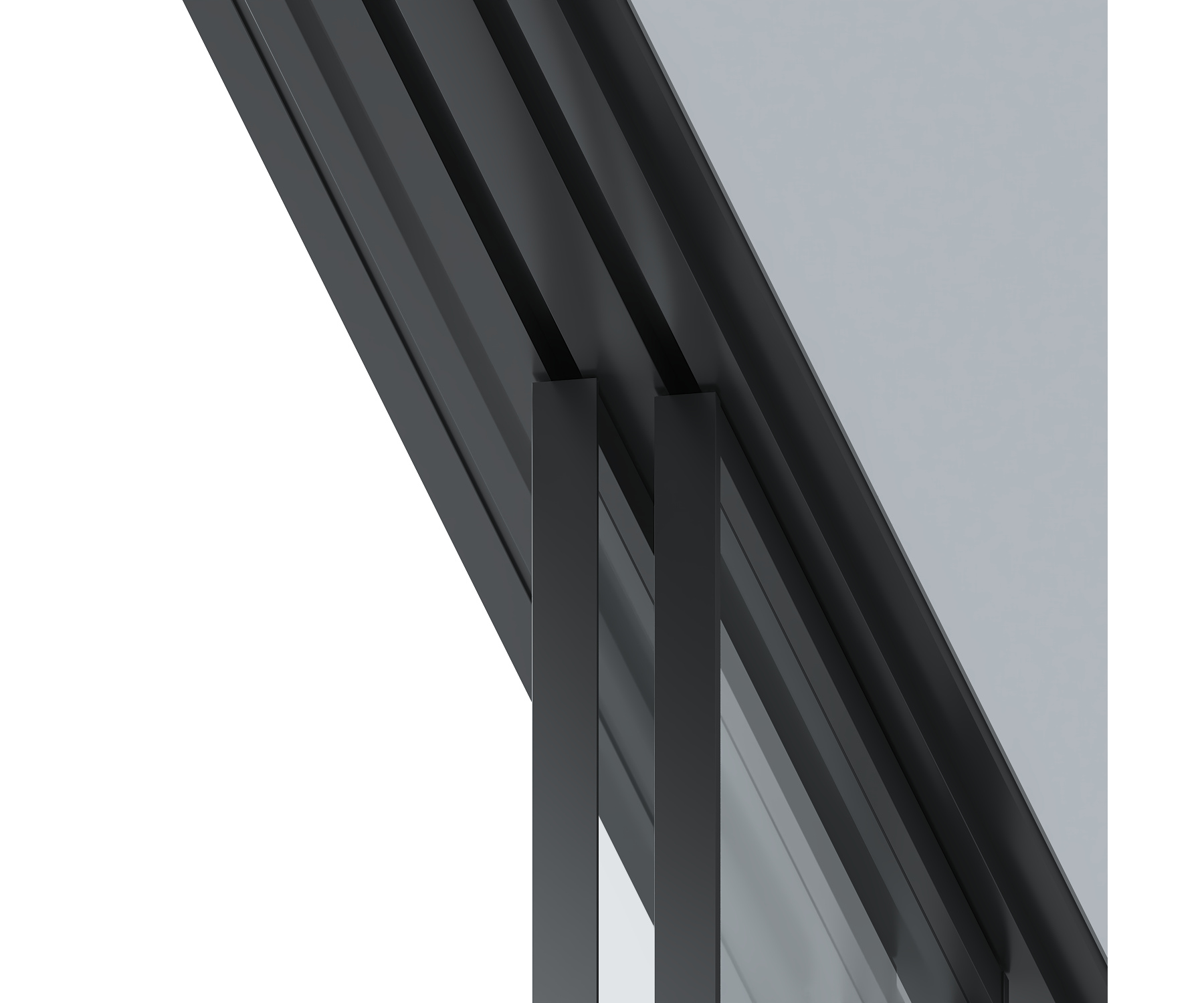

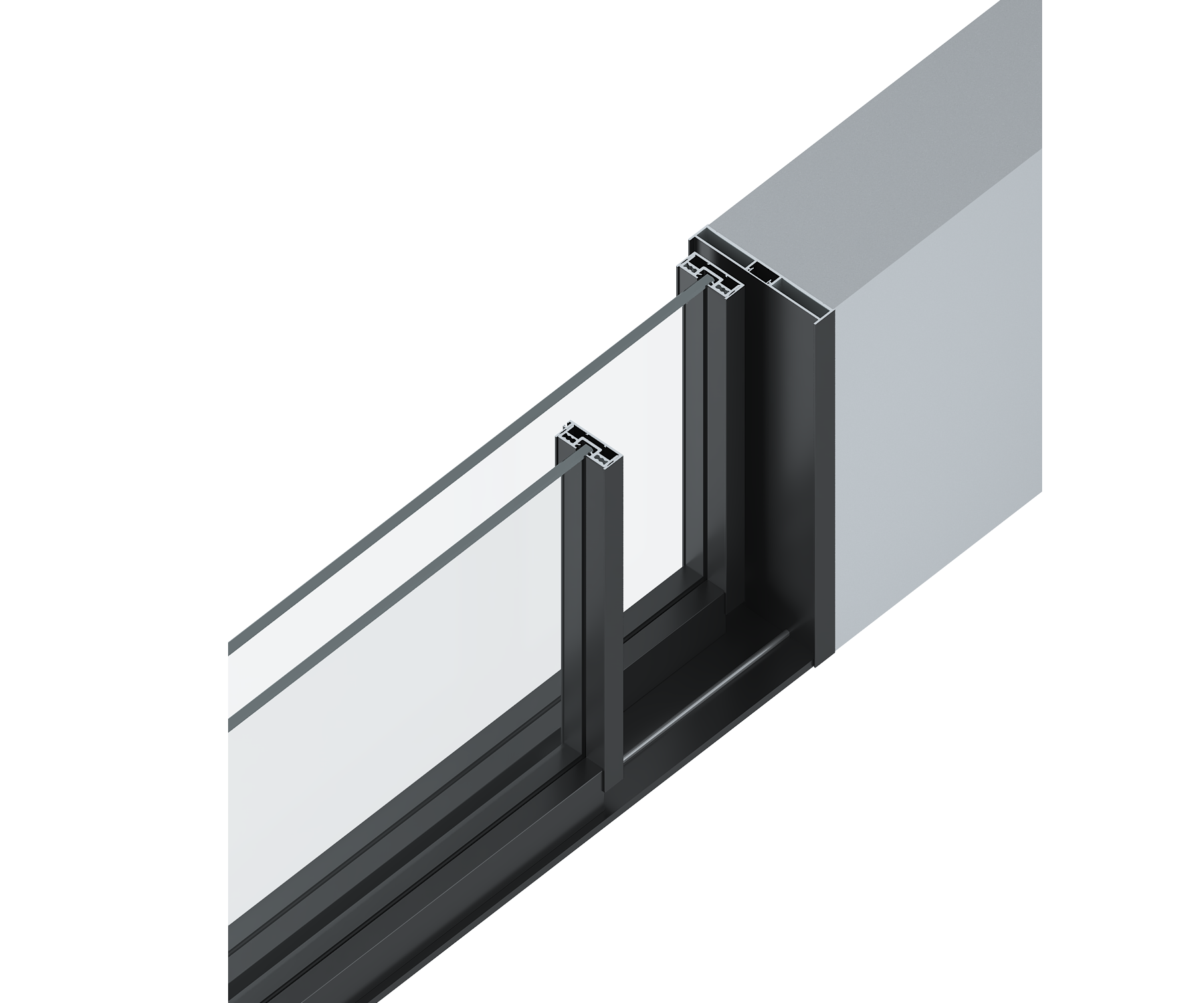

Trango 95 Series Sliding Door
An ultra-narrow multi-track aluminium sliding door (2-5 tracks) that stacks away for expansive, minimalist openings.
Specifications
- Aluminium type
- 6063-T5 aluminium profile
- Profile thickness
- outer frame 1.3 mm, upper rail 1.8 mm, sash 2.0 mm
- Profile surface treatment process
- powder coating
- Profile width occupying wall
- two rails 95 mm; three rails 141 mm; four rails 187 mm; five rails 238 mm
- Glass
- 5 mm + 9A + 5 mm
- Glazing
- Double glazed unit: 5 mm / 9 mm air / 5 mm
